108/STC
Art.-Nr.: 108/STC
Request now

One Systems designs and manufactures "Direct-Weather" high-performance loudspeaker systems. Every One Systems model is designed for outdoor and indoor sports and entertainment venues such as stadiums, theme parks, swimming centers, ice rinks, cruise ships, transportation systems and other challenging facilities and are built to withstand the rigors of rain, snow, sun as well as temperature and humidity extremes. One Systems products differ from other "weatherproof" designs by their premium sonic performance characterized by full-bandwidth response, superior vocal intelligibility, high output capability plus all of the extra protection required to withstand years of use in the elements.

Overview

100 V / 8“ 2 way Direct Weather Loudspeaker

The One Systems 108/STC is a universal direct weather loudspeaker. The 8-inch coaxial design provides true point source acoustic radiation from an extremely compact enclosure. The 108/STC utilizes stainless steel for all rigging points used in conjunction with One Systems rigging accessories, such as the the optional PM3/M pole mount bracket, or the PT-38/M pan/tilt bracket. The included U-Bracket and grille are both made from structural steel coating with a highly durable dual layer zinc rich powder coating.

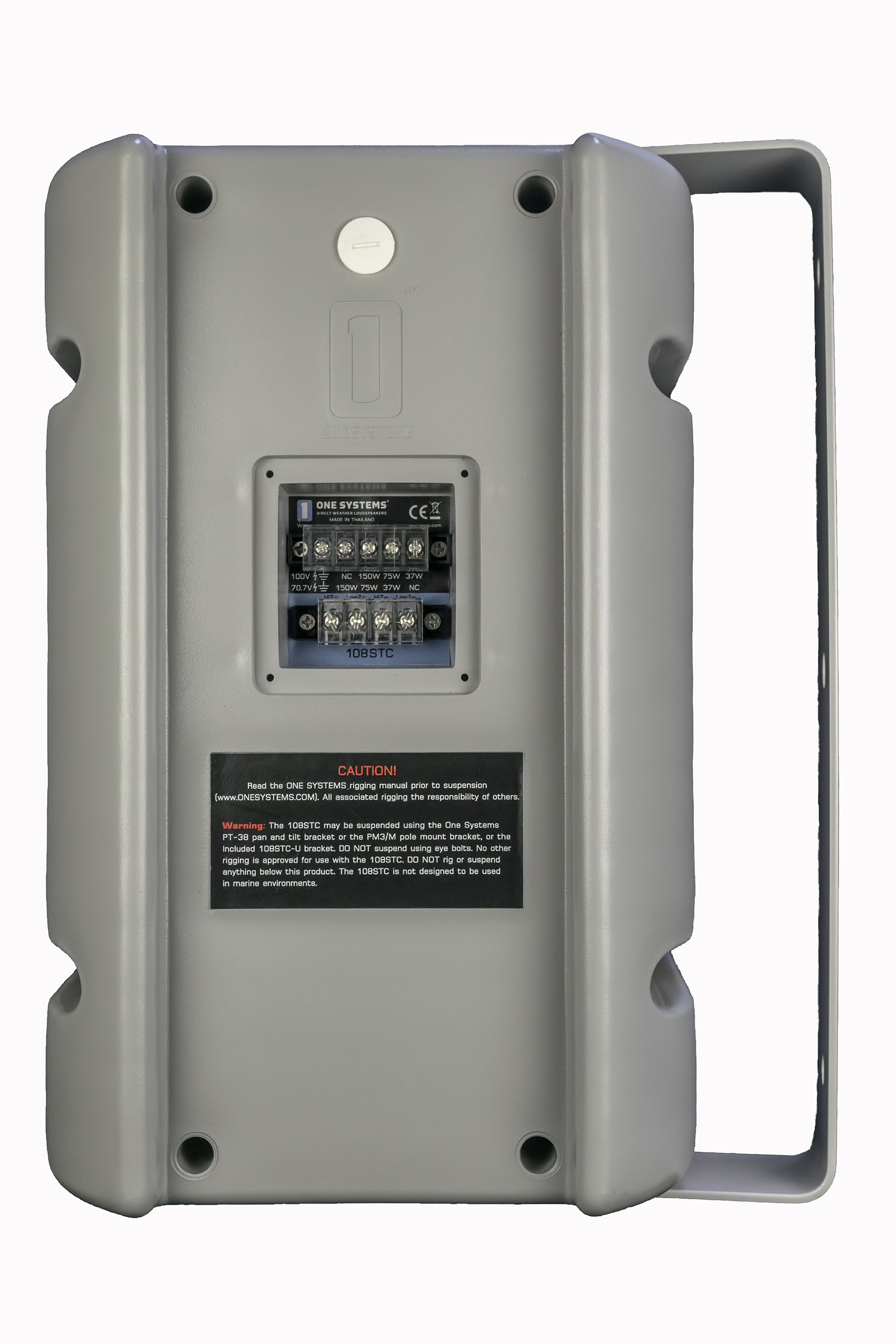

The 108/STC also features a configurable Hi Z or Lo Z mode. The Hi Z mode features a wide bandwidth 150-watt autoformer that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8-ohms. The configuration is easy and does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 108/STC offers a small format titanium compression driver and high order filtering that provides superior intelligibility and extended bandwidth. The use of a neodymium compression driver allows the system to be extremely lightweight for efficient installation.

The 108/STC is optimized for outdoor short throw to medium throw applications in theme parks, parade routes, baseball and football stadiums, and other entertainment/sports venues where permanent installation is required. The 108/STC has a very versatile design that offers high performance in a small physical package.

Product Details

  • 8“ 2 way Direct Weather Loudspeaker
  • Stainless steel rigging points
  • Dual layer zinc rich powder coat utilized on grille and included U-Bracket
  • 70V/100V/ low impedance operation
  • No performance degrading passive protection devices
  • 150 Watts continuous power handling (8 ohm)
  • Highly suitable for direct weather environments
  • Optional PM3/M pole mount system and PT-38/M pan/tilt bracket available
  • IEC 529 IP 45 ingress protection
Frequency Response
7Hz-20kHz
Coverage Pattern
70° (H x V)
Crossover Frequency
1.5kHz
System Sensitivity (1W/1m)
89dB
Power Handling
150W
Input Impedance (Lo Z)
8 Ohms
Power Taps (70V /100 V)
150 / 75 / 37.5 W
Weight
8.4kg
Dimensions (H x W x D)
350 x 233,2 x 271,4 mm
