Mostly invisible but indispensable: cables are the neural network of every AV installation. We offer cables for the most important types of audio, video, data and power signals, on request also by the metre with customised connectors. Flexible adaptor solutions for both analogue and digital formats make our portfolio complete.
The CSV210 series are slimline HDMI 2.0 cables available in lengths from 0.5m up to 5m. They are specially designed for reliable connections in professional installations and applications. The design, with an outer diameter of only Ø 4.5 mm, offers an elegant solution for use in the office when installing narrow installations behind TVs or ensuring the best possible airflow in rack applications. They are fully HDMI 2.0 compliant and can handle a bandwidth of up to 18 Gbps and resolutions of up to 4K @ 60 Hz 4:4:4. The Semi-Lock™ connector with gold-plated contacts guarantees reliability in all types of environments.
The BSP410 is an HDMI 19 female to DVI male straight adapter. This adapter can transform the connection of a HDMI cable to DVI for monitors, projectors or tv's where only a DVI input is available
The SVHS10 is a high quality S-VHS cable with internal 2 shielded coax cables to carry luminance and chrominance signals and is ideal for all quality S-VHS interconnects. The 7-strand bare copper conductors of the coax cables ensure a good flexibility of the cable while the twisted tinned copper shielding provides a good shielding from external electrical noise.
The PRX220A series consists of armored optical HDMI 2.0 cables which are able to transmit resolutions up to 4K@60Hz 4:4:4 with a bandwidth of 18Gbps via optical fiber, eliminating the possibility of electronic interference. They are assembled on a light weight, extremely strong and impact resistant reel. The cable is provided with a stainless steel and Kevlar armor to protect the fibers. Combined with the heavy duty connectors with robust covers, this cable is perfectly suited for the harshest use and abuse that any rental and road applications can throw at it.
The PRX160 is a HighFlex™ 75Ω coaxial video cable (PCX160) assembled on a lightweight, extremely strong and impact resistant reel (CDM310). The cable is solid but flexible constructed featuring a stranded high purity copper conductor (19 AWG), which is surrounded by a foamed polyethylene isolator. The shielding consists of a dual braiding which offers a high immunity against noise and interference caused by external devices, while offering a high flexibility and reliability for mobile applications. The cable end is terminated using a male BNC connector while chassis side is fitted with a female BNC connector. It can be used for a wide variety of mobile applications such as analogue video interconnections as well has HDTV digital SDI and HD-SDI.
The HDM24 is a bulk reel of quality 24AWG-size HDMI cable. Since this thicker cable offers less resistance, it is highly suitable for relatively longer distances. It is designed for installation using the PROCAB contractor series equipment. length:s below 10m will perform as HIGH SPEED HDMI with ETHERNET. length:s between 10 and 15m will perform at STANDARD SPEED HDMI with ETHERNET standards. Recommended HD distance : 20 m (1080p)
The COP140 is an HDMI Micro D female to DVI-D male straight adapter for use with the CLV220A only. This adapter can transform the connection of an HDMI cable to DVI for monitors, projectors or TV's where only a DVI input is available.

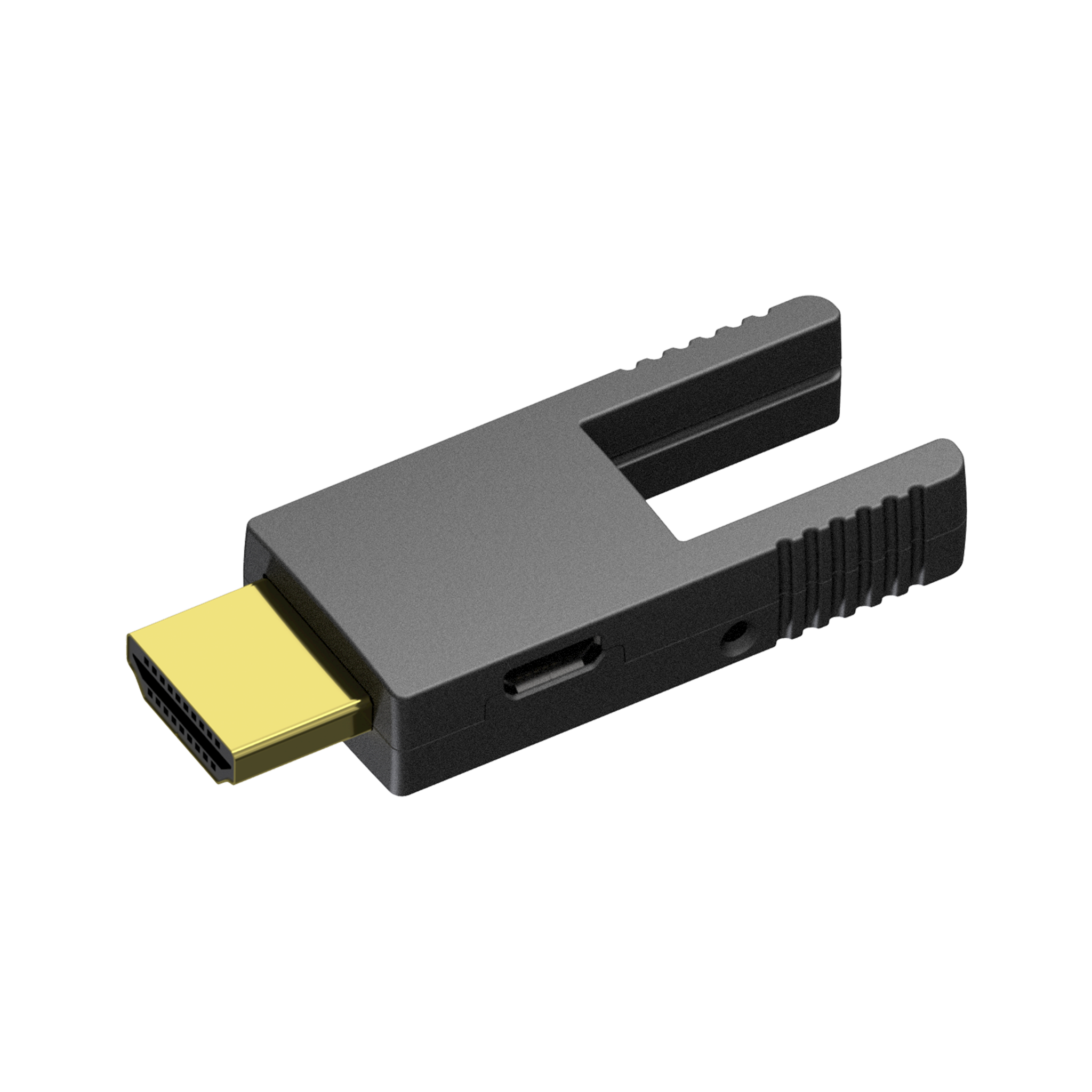

The COP110 is an HDMI Micro D female to HDMI A male straight adapter replacement part* for use with the CLV220A only. This adapter can transform the connection of the HDMI Micro D cable to an HDMI A male connection for projectors, laptops, desktops or TV's where HDMI A ports are available.
*2 pieces COP110 come included with the CLV220A.
The VCK450 is a Keystone video adapter with a female HDMI connector on the front side and a pigtail female HDMI connector on the back of the module . This compact standardized snap-in module can easily be implemented in 45x45mm connection plates, CAYMON CASY modules or D-size holes.
The VCK452 is a Keystone video adapter with a female HDMI connector on the front side and a female HDMI connector on the back of the module . This compact standardized snap-in module can easily be implemented in 45x45mm connection plates, CAYMON CASY modules or D-size holes.

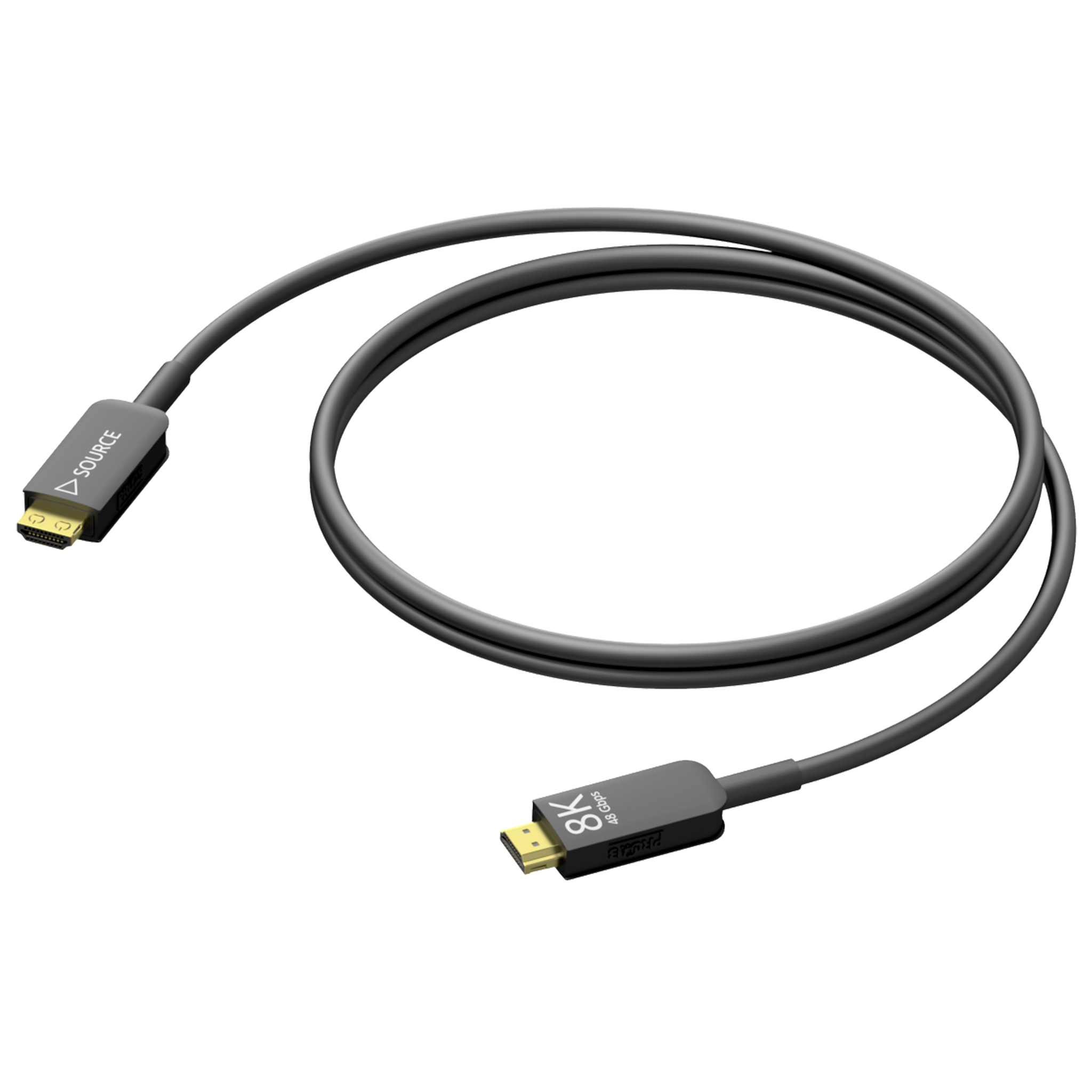

The CLV310A is an active optical HDMI 2.1 cable, designed for transmission of the next generation of 8K video content. It is able to transmit resolutions up to 8K (7680 x 4320p) 4:4:4 at 60 Hz with a bandwidth of 48 Gbps via OM3 optical fiber technology, eliminating the possibility of electronic interference. It is backward compatible with HDMI 2.0 and HDMI 1.4, guaranteeing an optimal and future proof solution for any kind of installation.
Ready for future HDCP 2.3 content encryption, compatible with all current and emerging HDR standards (HLG, HDR-10 and HDR-10+, Dolby Vision, Perceptual Quantizer and SL-HDR-1) and compatible with eARC HD audio standard.
The Semi-Lock™ feature of the HDMI connector increases the withdrawal force of the connector and avoids loose or unstable connections of the HDMI connectors, reducing unwanted signal loss or disconnections.

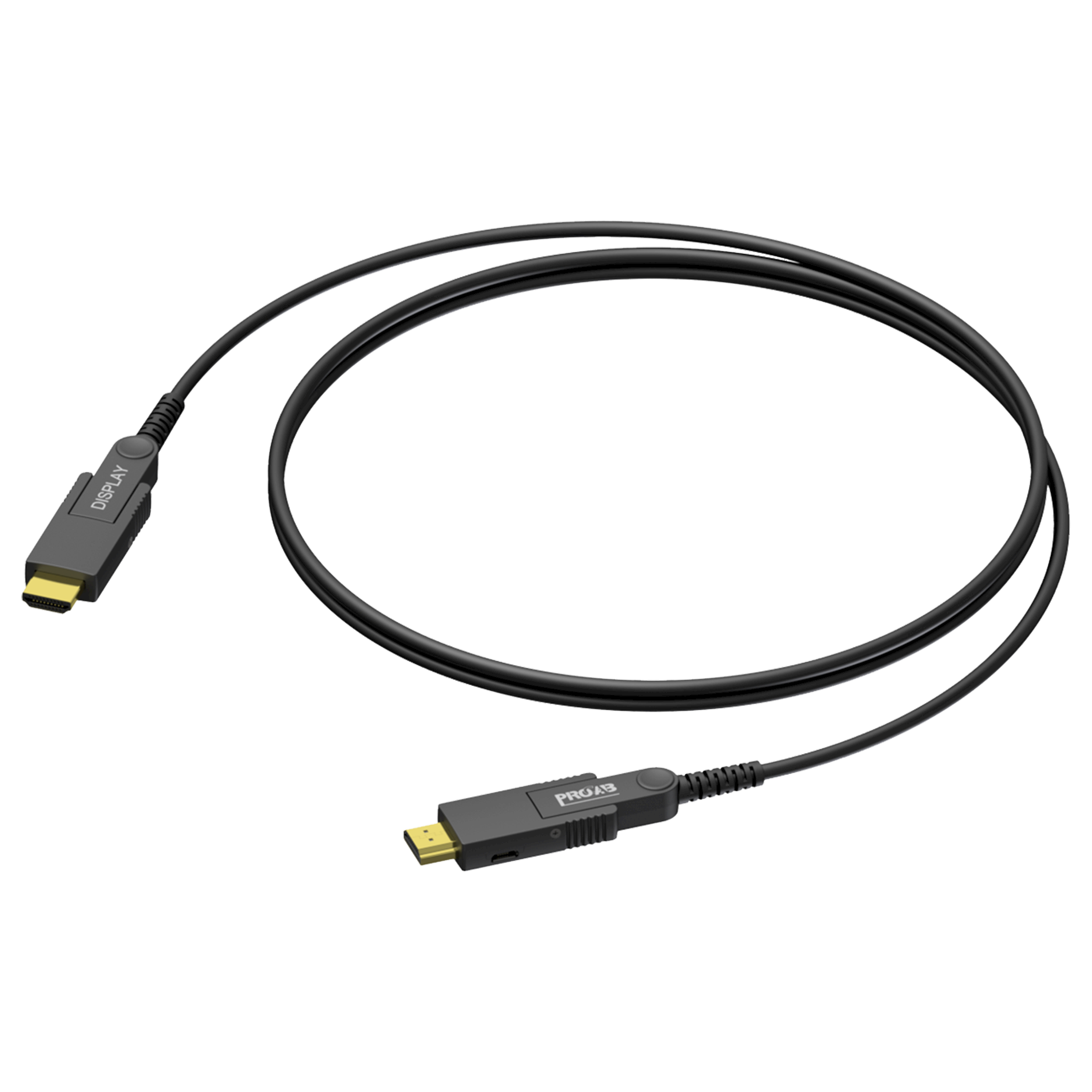

The CLV220A is an active optical HDMI 2.0 cable aimed for fixed installations. It is able to transmit resolutions up to ultra HD 4K 2160p (3840 x 2160) at 60 Hz with a bandwidth of 18Gbps via OM3 fiber optical fiber technology, eliminating the possibility of electronic interference. The interchangeable connectors enable you to easily detach and reattach the connectors. This way the cable can be fitted through holes and straight tubes with diameters as small as 25 mm.
The CLV220A comes with a USB A to USB Micro B cable included, which is an accessory only required when the HDMI port on the transmitter side is delivering insufficient voltage (typically required when < 4.8 V) for powering the receiver end. Normally the power is transferred from transmitter end to receiver end over the CLV220A cable.
Most general HDMI sources deliver sufficient voltage making the additional cable unnecessary. However typical applications where it might be required are e.g. streaming media player boxes, which might deliver insufficient voltage over their HDMI output.
The CLV215A is an active optical HDMI 2.0 cable aimed for fixed installations. It is able to transmit resolutions up to ultra HD 4K 2160p (4096 x 2160) at 60 Hz with a bandwidth of 18Gbps via OM3 fiber optical fiber technology, eliminating the possibility of electronic interference. The fixed and detachable HDMI connector enable you to easily detach and reattach this connector. This way the cable can be fitted through holes and straight tubes with diameters as small as 25 mm.
The CLV215A comes with a USB A to USB Micro B cable included, which is an accessory only required when the HDMI port on the transmitter side is delivering insufficient voltage (typically required when < 4.8 V) for powering the receiver end. The power is transferred from transmitter end to receiver end over the CLV215A cable.
Most general HDMI sources deliver sufficient voltage making the additional cable unnecessary. However typical applications where it might be required are e.g. streaming media player boxes, which might deliver insufficient voltage over their HDMI output
The CLV210A is an active optical HDMI 2.0 cable aimed for fixed installations. It is able to transmit resolutions up to ultra HD 4K 2160p (3840 x 2160) 4:4:4 at 60 Hz with a bandwidth of 18Gbps via OM3 fiber optical fiber technology, eliminating the possibility of electronic interference. With HDCP 2.2, CEC, HDR and ARC support the CLV210A meets or exceeds existing HDMI standards.
Unfortunately it is still common for standard HDMI cables to become detached or loosened and create intermittent up to complete signal loss, to avoid these unwanted disconnections the CLV210A has a smart Semi-Lock™ feature specially designed to up the withdrawal force for unplugging the connector.

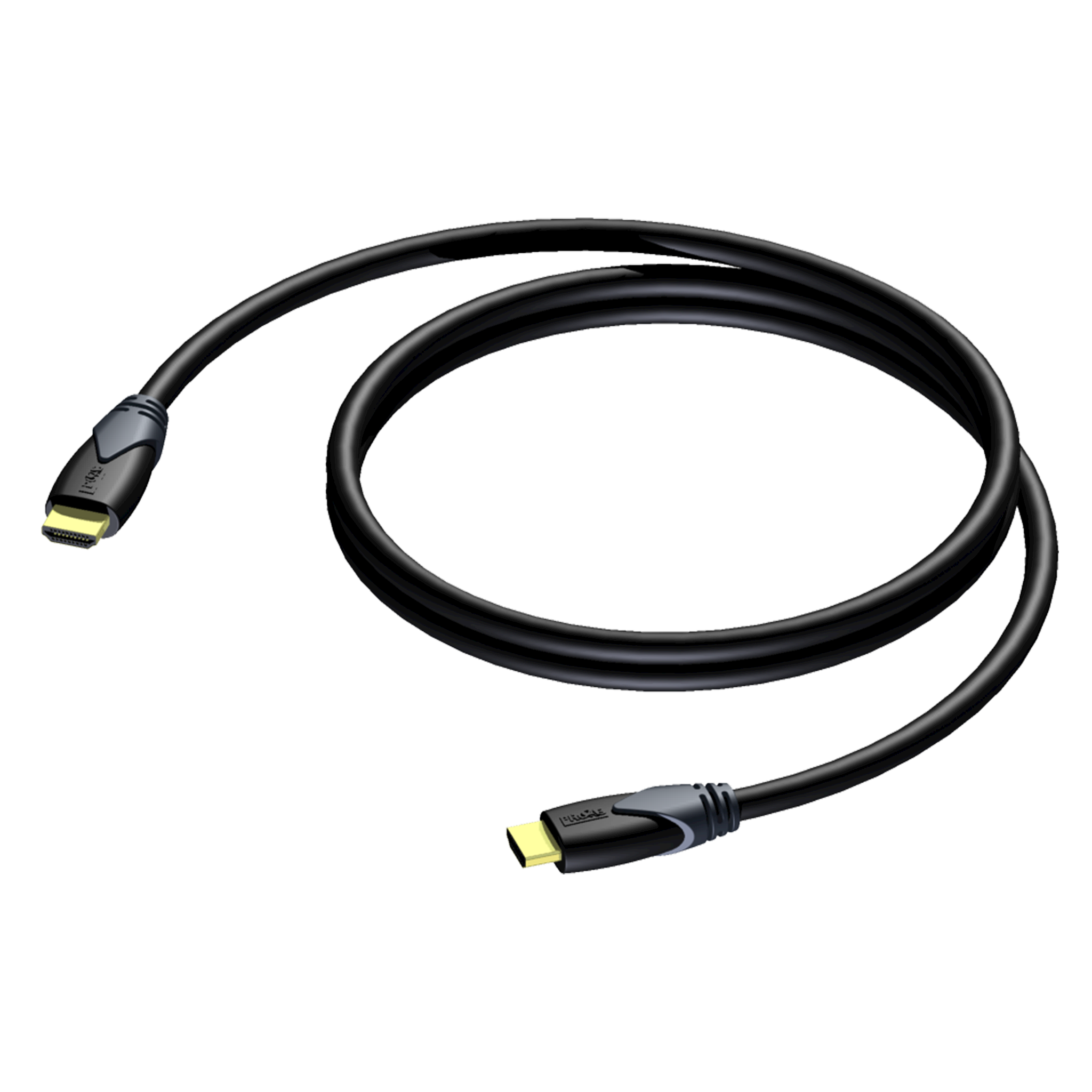

The CLV200 is a high-quality HDMI cable featuring a low smoke & halogen free outer jacket compliant to related standards for installations in public installations. The smooth and durable outer jacket guarantees a great installers convenience. It consists of a conductor section with 5 individually shielded 24 AWG pairs and four separate wires, guaranteeing high speed HDMI with ethernet up to 10 meters and a standard speed HDMI with ethernet for longer distances. The highly effective overall shielding consists of an Al-mylar foil with high coverage braiding, which results in a triple shielding offering excellent immunity against noise and interference caused by external devices.

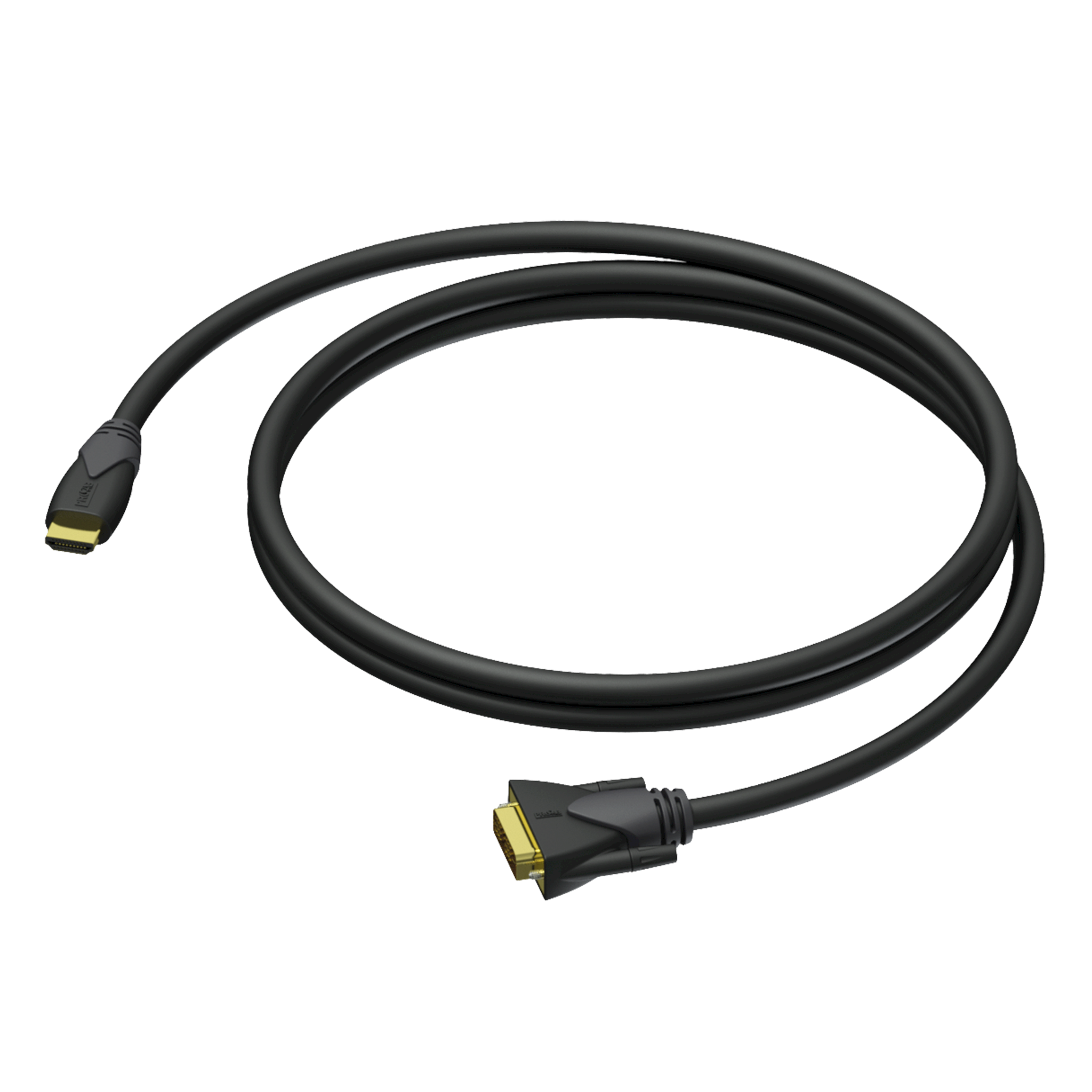

The CLV160 is fitted with a DVI-D male and a HDMI A male connector, capable of delivering High Speed Signal for cable length:s up to 5m. From 5m and onwards the maximum signal transfer is to 1080i. Certain High Speed HDMI functions such as Audio transfer, Audio Return and an Ethernet channel are incompatible with DVI. It comes in length:s of 1.5 meters to 10 meters, providing solutions for all applications.
This is a coax cable with a characteristic impedance of 50 Ohm. The cable was built according to the RG58 standard. This type of cable is mainly used in radio transmitter applications. You could for example connect an antenna with an RF receiver or transmitter.

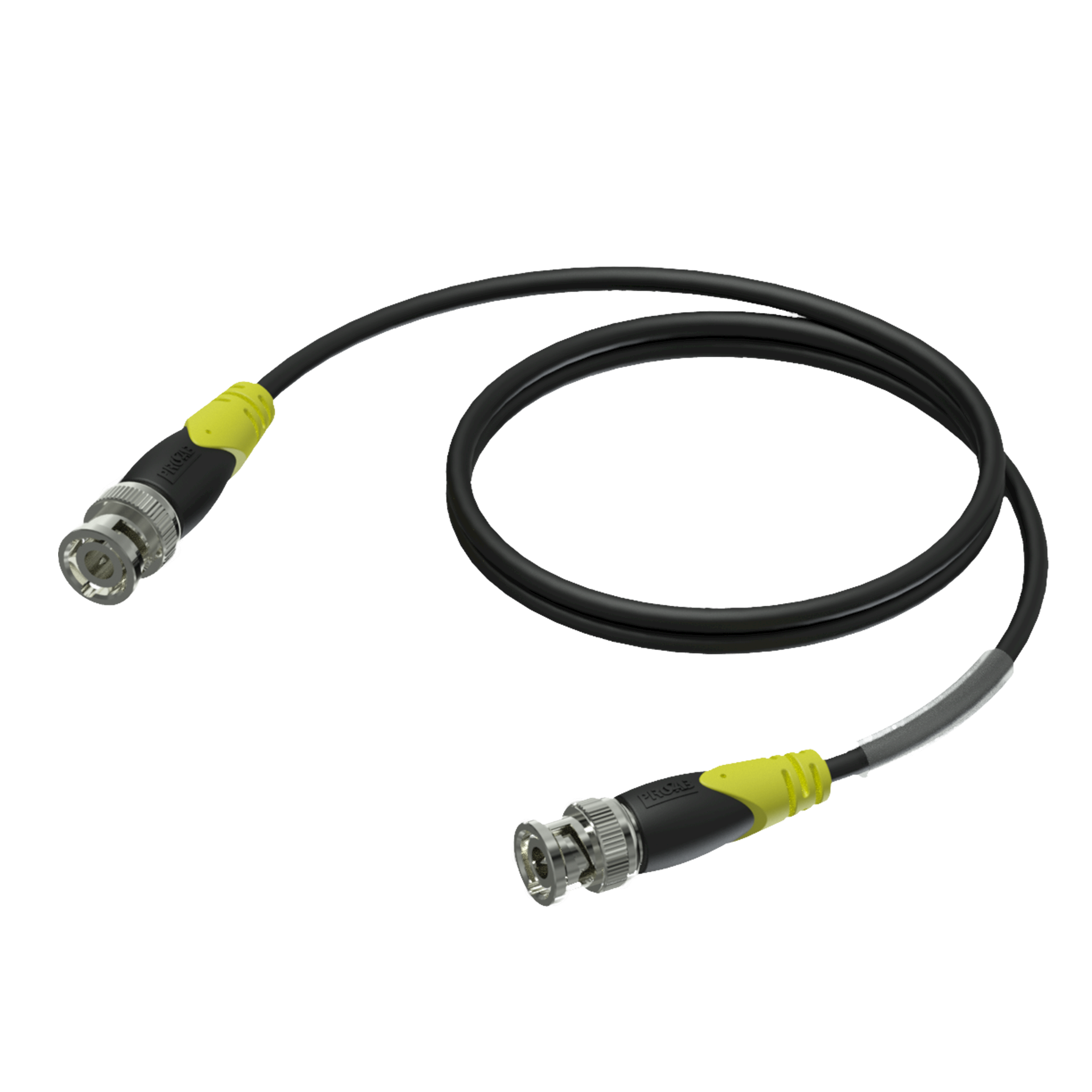

The CLV158 is a 75 Ohm coax cable fitted with BNC male connectors on both ends. It comes in length:s of 5 meter to 20 meters, providing solutions for all applications.

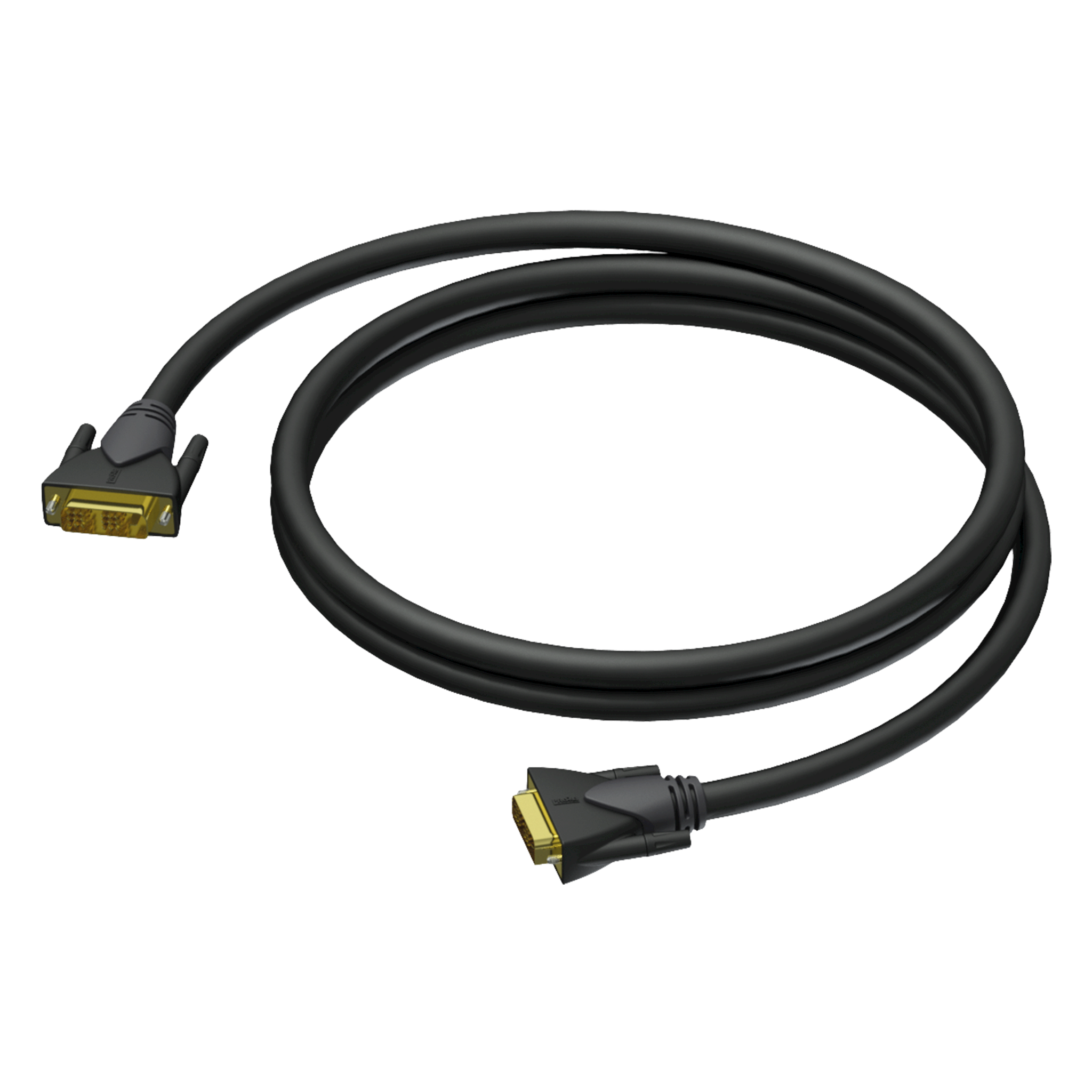

The CLV140 is fitted with a DVI-D male connector on both ends and support higher-resolution display devices, this DVI cable contain double the number of TMDS pairs, effectively doubling the video bandwidth. As a result, higher resolutions up to 2560 × 1600 are supported at 60 Hz. Audio Return and an Ethernet channel are incompatible with DVI. It comes in length:s of 1.5 meters to 10 meters, providing solutions for all applications.

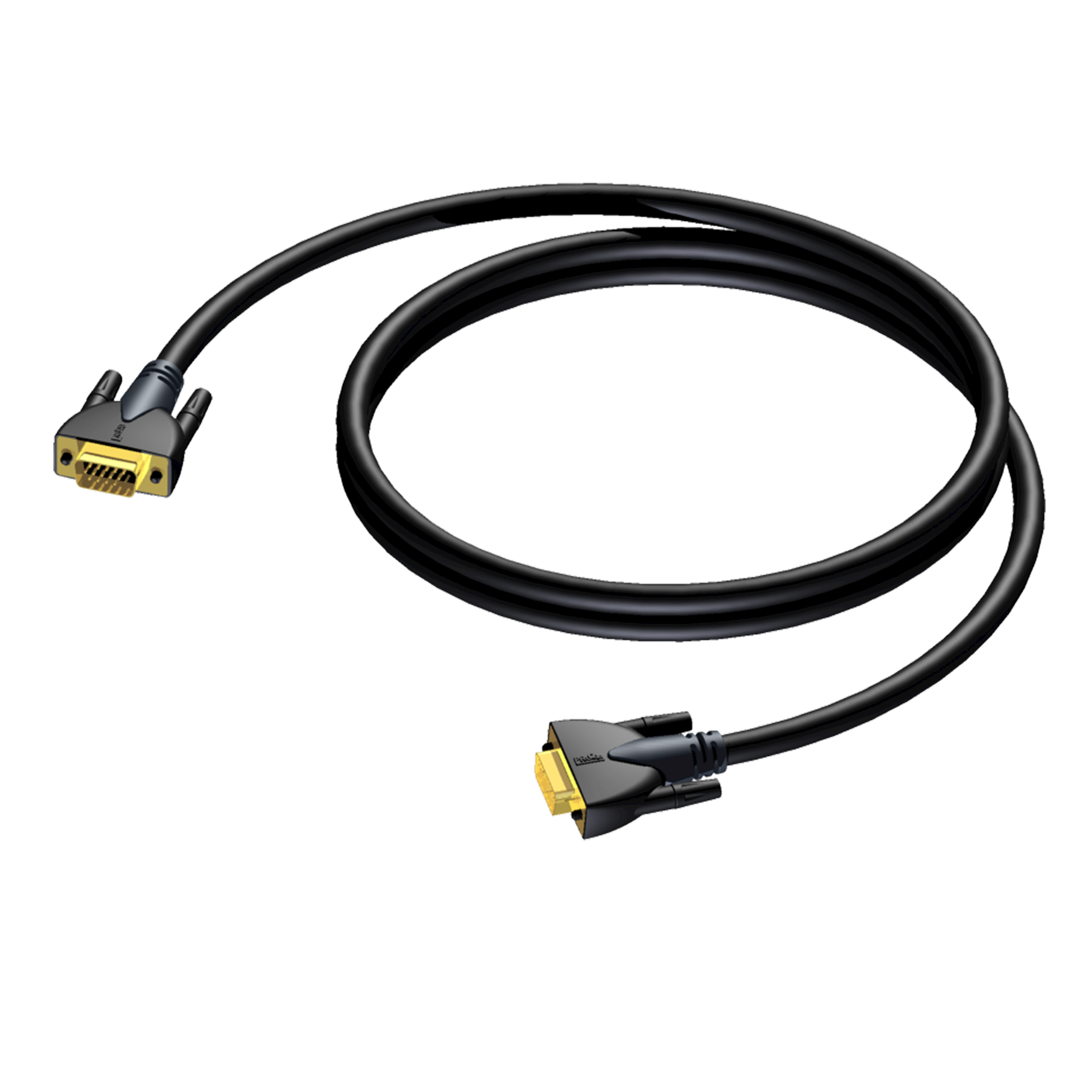

CLV114 is a high quality SVGA cable with 5 coaxial conductors carrying the RGBHV signals. It has a aluminium foil shielding with 100% coverage. EDID and DDC are supported. The connectors are gold plated to ensure maximum connectivity. All pins are connected.

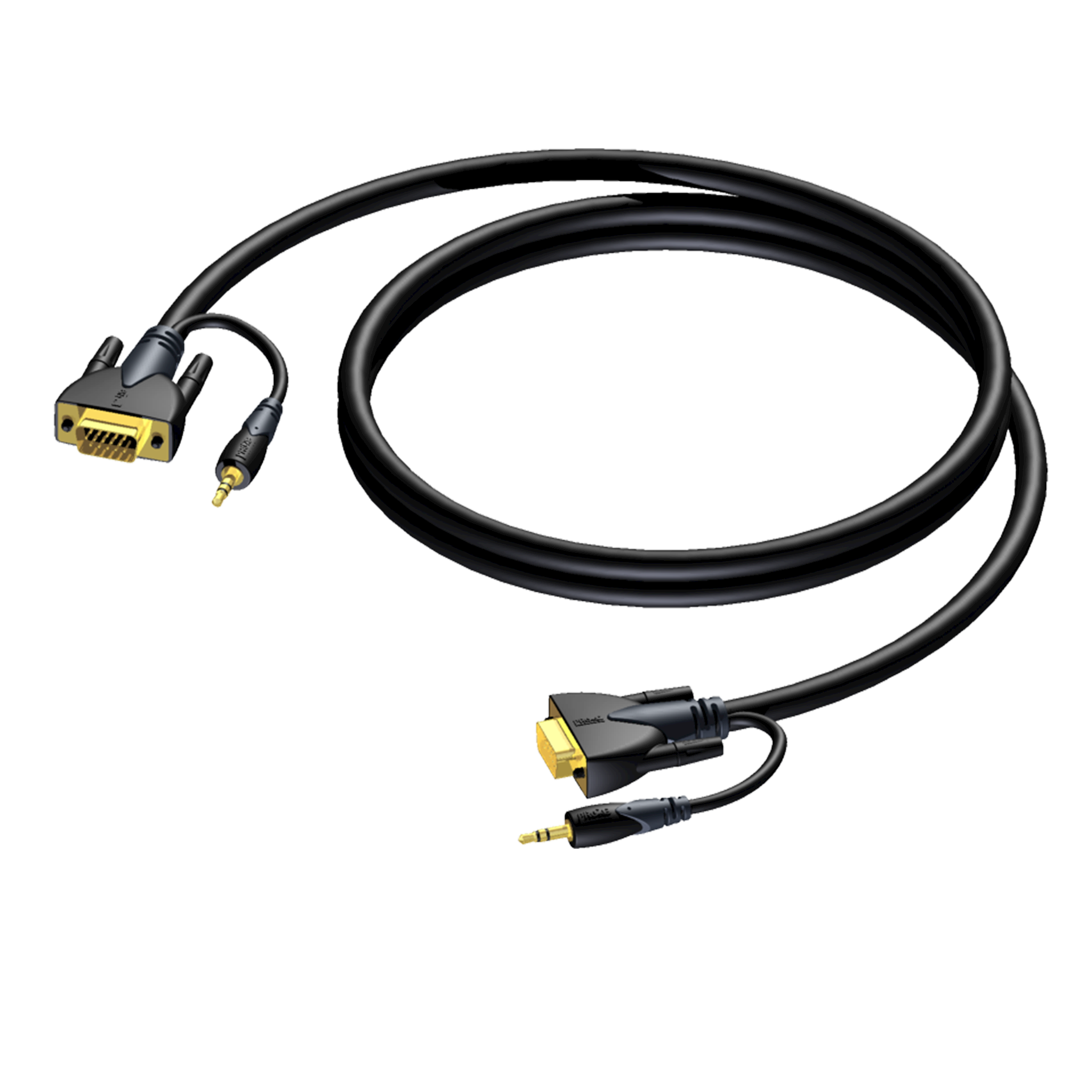

CLV115 is a high quality SVGA cable with 5 coaxial conductors carrying the RGBHV signals. A aluminium foil shielding will grant with 100% coverage. EDID and DDC are supported. The connectors are gold plated to ensure maximum connectivity. All pins are connected. On one side, the mini jack cable end is 15 cm (projector side) and on the other side (computer side) the mini jack cable end is 50 cm.
The CLV100 is a Classic-series quality HDMI cable and will provide a reliable solution for all your audiovisual connections.This cable lives up to the highest certification standards currently available in HDMI and offers Ethernet support as well as an Audio return channel. The combination of gold plated contacts, oxygen free copper conductors and the added triple shielding (to protect against EM and RF interference) assure an optimal performance. To make sure this performance lasts, it is protected by a durable Long Life outer jacket. length:s below 10m will perform as HIGH SPEED HDMI with ETHERNET. This means that at length:s below 10 meter, the CLV100 supports not only 1080p signals, but also massive 4K x 2K cinema resolutions and 3D images. length:s of 10m and above will perform at STANDARD SPEED HDMI with ETHERNET standards and can carry up to 1080i/720p signals.
The CLP342 is an HDMI 19 male to DVI female straight adapter. This adapter can transform the connection of a DVI cable to HDMI for monitors, projectors or tv's where only a HDMI input is available. The adapter has a flexible body to release strain on the input connection or connected cables. The firm molding over the connector ensures an isolation from the ground and gives a solid feel.

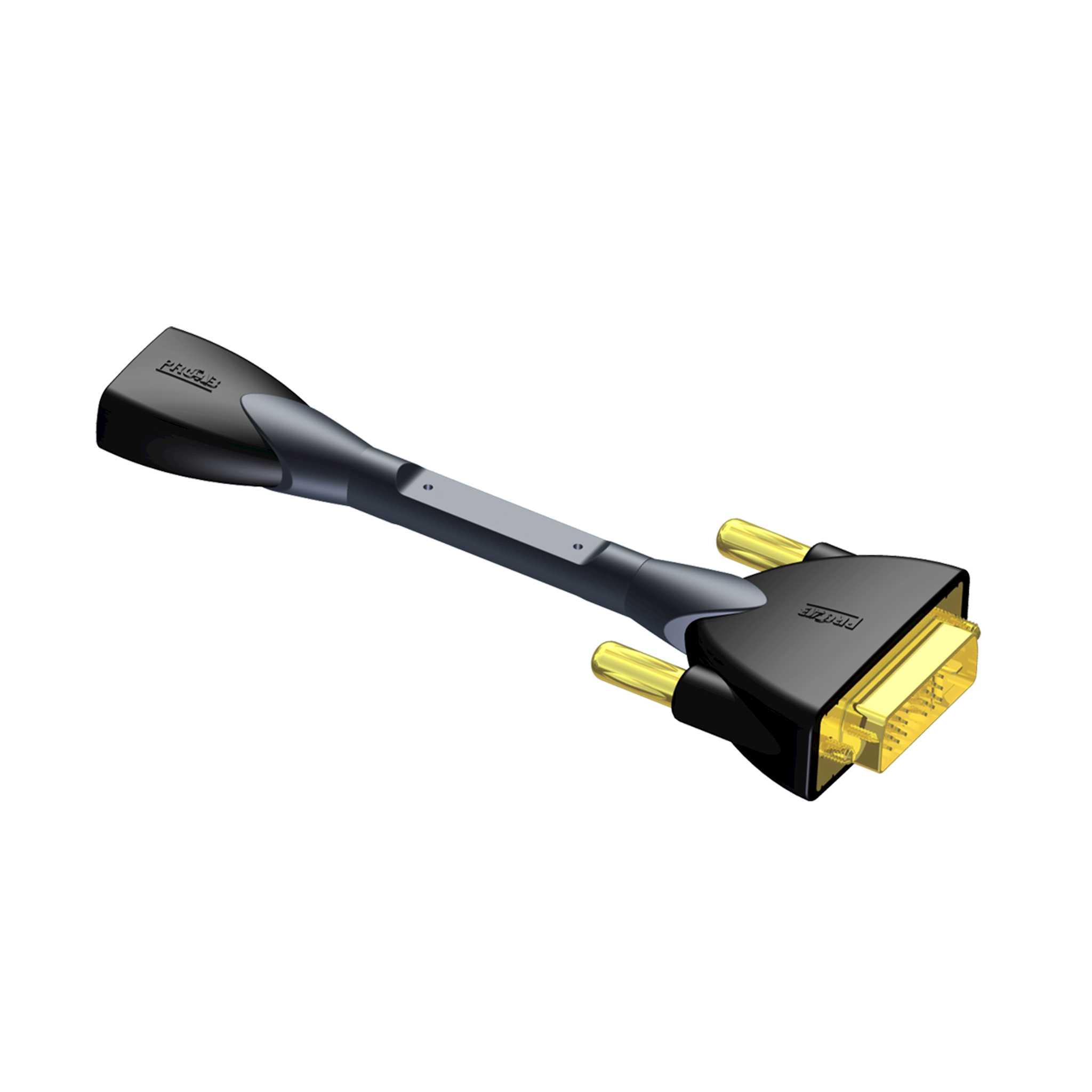

The CLP341 is an HDMI 19 female to DVI male straight adapter. This adapter can transform the connection of a HDMI cable to DVI for monitors, projectors or tv's where only a DVI input is available. The adapter has a flexible body to release strain on the input connection or connected cables. The firm molding over the connector ensures an isolation from the ground and gives a solid feel.
