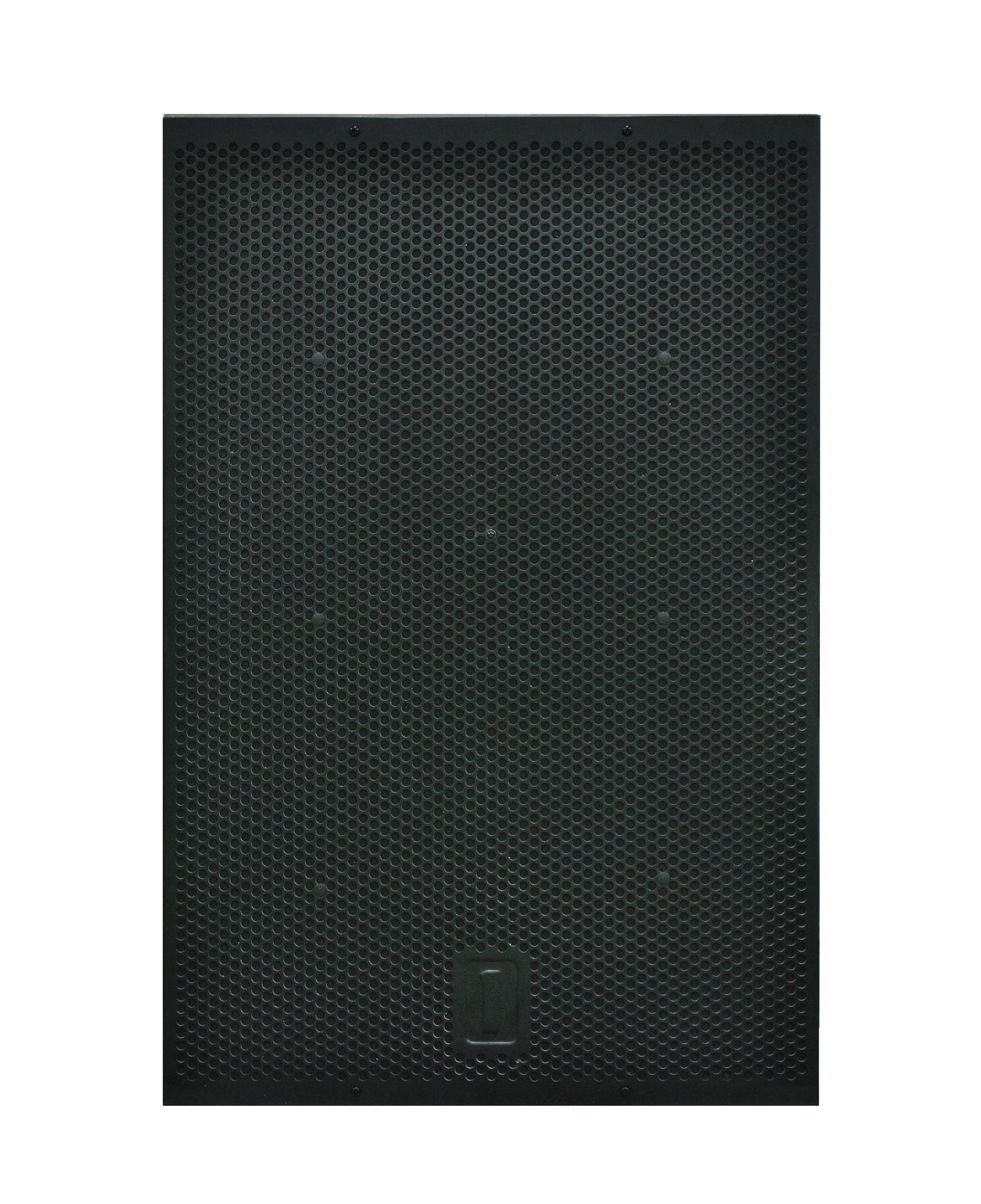

The One Systems Cross Field Array-2HTH (CFA-2HTH) was designed to provide very high intelligibility and acoustic output where long throw requirements are specified. The enclosure features all 316 (marine) grade stainless steel rigging. The grill assembly and all other fasteners are 304 -grade stainless steel that feature a newly developed coating system allowing the CFA-2HTH to be used in ocean front and marine environments, as well as inland direct weather environments. The CFA-HTH is a nominal 55 degree horizontal by 30 degree array that features a fully rotatable high frequency horn/waveguide. This allows the CFA-2HTH to be used in either a vertical or horizontal orientation and still allows the desired coverage patterns. The high-frequency configuration consists of two large-format, close-spaced compression drivers coupled to a 2” (50.8mm) constant directivity horn. The low-frequency configuration consists of 4 bandwidth optimized 10” (254mm) diameter woofers in a 2 x 2 array. The CFA-2HTH is ideal for both outdoor/direct weather long throw applications and indoor applications in high ambient noise environments. Typical applications are football and soccer fields, baseball fields and large theme park environments. Indoor environments such as basketball and hockey arenas are also well very appropriate venues for the CFA-2HTH, due to the ultra- high system intelligibility. In order to achieve maximum system performance the CFA-2HTH should be high-pass filtered using a 4th order (24dB/octave) high-pass filter set to 80Hz. This filter frequency can be set using any high-quality DSP based loudspeaker processor. The CFA-2HTH is a direct weather design that features a three-layer stainless steel grille assembly. The enclosure design is a laminated fiberglass construction with high safety factory structural rigging points molded in the enclosure shell. The system is also compatible with the One Systems Pole Mount System PM4/M where vertical tilt requirements are specified in a pole mount application. The One Systems PT7/6M is also compatible with the CFA-2 HTH when pan and tilt are both required. The PT76/M is suitable for flat surface mounting only. The CFA-2HTH has an internal 600-watt autoformer and an internal jumper system that allows the enclosure to be used in either a “Lo Z” (4-ohm) or “Hi Z” configuration. The autoformer taps are 600 watts, 300 watts, and 150 watts. The input will allow for either 70.7Vrms operation or 100Vrms operation. The autoformer is a very low insertion loss (

The 312HC is a very high-output 3-element shaded array loudspeaker system. The 312HC was designed to produce very high sound pressure level vocal range content with superior intelligibility. The 312HC utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 312HC to be used in ocean front and cruise ship applications, as well as in general direct weather installations. The 312HC may be used in direct weather outdoor installations, as well as indoor applications where high vocal intelligibility and accuracy are required. Like all One Systems products, the 312HC was designed to not only offer excellent full-range fidelity, but also superior vocal reproduction and intelligibility. For extended bandwidth applications, the 312HC may be coupled with the 118HSB subwoofer to provide full bandwidth operation at very high sound pressure levels and in a relatively small footprint. The system consists of 3 each 12-inch direct radiator transducers in a shaded array. The top 12-inch element is also a coaxial system that features a large format compression driver. The 312HC produces full bandwidth response and excellent vertical control. This array produces vertical beam width control to below 200 Hz and maintains a 60 degree vertical included radiation angle to below 300 Hz. This makes the 312HC excellent for reverberant indoor spaces such as gymnasiums, basketball.

The 212HC is a very high-output two-element array loudspeaker system. The 212HC was designed to produce very high sound pressure levels, with broad bandwidth content and very high intelligibility. The 212HC utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 212HC to be used in ocean front and cruise ship applications, as well as in general direct weather installations. The 212HC may be used in direct weather outdoor installations, as well as indoor applications where high vocal intelligibility and accuracy are required. Like all One Systems products, the 212HC was designed to not only offer excellent full-range fidelity, but superior vocal reproduction and intelligibility as well. For extended bandwidth applications, the 212HC may be coupled with the 118HSB to provide full bandwidth operation at very high sound pressure levels and in a very small footprint. The systems consists of 2 each 12-inch direct radiator transducers in a vertically oriented array. The top 12-inch element is also a coaxial system that features a large format compression driver. The 212HC produces full bandwidth response and excellent vertical control. The two element vertical array provides improved polar control. This makes the 212HC excellent for reverberant indoor spaces such as gymnasiums, basketball arenas, and large general purpose spaces. The extended vertical control is also ideal for outdoor spaces, where vertical control must be maintained throughout the entire vocal range. Unlike most high level vocal range systems, the One Systems 212HC in not a series of horns “nested” inside larger horns. These prior art designs suffer from poor vocal intelligibility, are characterized by that traditional “honky” horn sound and poor time domain response. The 212HC enclosure is a copolymer optimized for high UV exposure and long life in harsh environments. The grille is a 3-layer “rain shield” design that will minimize direct rain contact with the system’s transducers. The enclosure and grill design are rated to IEC 529 IP 45 (solid object penetration to 1 mm (0.04 inches) and water jets from any direction). The 212HC may be suspended using the PM4/M pole mount system or the PT76/M pan and tilt system. The PT76/M is for flat surface mounting only. Additionally, an optional U-bracket, the 112HTH-U/M is available. The system ingress protection is IP 45 in normal mode and IP 56 with the vent plugs installed.

The One Systems 208HTC is a universal direct weather loudspeaker system designed for use in both marine environments and in general purpose inland environments. The dual 8-inch two- way design provides high level acoustic radiation from a compact enclosure. The 208HTC utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 208HTC to be used in ocean front and cruise ship applications, as well as in general direct weather installations The 208HTC also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 1 50-watt autoformer that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 4 ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 208HTC (USA) offers a medium format titanium compression driver and high order filtering to provide superb intelligibility, extended bandwidth, as well as superior system dynamics. The 208HTC is optimized for outdoor short throw to medium throw applications such as theme parks, parade routes, baseball and football stadiums, and other entertainment/sports venues where permanent installation is required. The 208HTC is a very versatile design that offers high performance in a small physical package. The 208HTC is a two-way design that features a two element vertical array. The 208HTC features two 8-inch low frequency devices. The top 8-inch unit is a coaxial design that utilizes a medium format titanium compression driver to provide high frequency radiation. The One Systems 208HTC features 7 each M8 rigging points. These rigging points may be used with the One Systems PM3/M pole mount system or the PT38/M pan and tilt rigging brackets. The PT38/M is used for flat surface mounting. An optional U-bracket, the 108HTH-U/M, is also available as an accessory. The enclosure is an injection molded design that utilizes a high- impact copolymer material that exhibits superior weather resistance. The 208HTC is available in either black or white color. Both color options are stabilized for ultra violet exposure. The design features a three-layer “rain shield” grille and input weather cover with waterproof gland nut. The system ingress protection is IP 45 in normal mode and IP 56 when the vent plugs are installed.

The One Systems 112.HSB is a premium-class 12" subwoofer solution that’s suitable for indoor and outdoor professional audio applications. The 112.HSB provides additional low-frequency output when used with all variants of One Systems 104, 106, 108, 208, 112 and 212 full-range speakers. The 112.HSB’s 12" transducer is equipped with a 4" voice coil. Its patented 12I/O woofer utilizes a voice coil that’s wound on the inside of the coil’s support structure (U.S. Patent #8,543,856 B2). This design provides high magnetic system displacement and increased thermal transfer that reduces power compression and ensures higher reliability. The 112.HSB utilizes a thick-walled injection molded enclosure designed to handle direct weather applications. The 112.HSB’s input section features a weather cover equipped with an IP 68 rated gland nut and a 4-position barrier strip with stainless steel hardware. For optimum performance, the 112.HSB requires bi-amplification and the use of a DSP-based loudspeaker processor. When being used with small and medium-format One Systems full-range speakers, the 112.HSB can be run as a "classic" subwoofer to extend the system’s overall response. When combining the 112.HSB with the 112 and 212 full-range models, the system should be run in an "overlap" mode to ensure that the full-range speakers and subwoofer to successively combine their outputs to produce additional LF impact with the higher output capability of the larger systems.

The One Systems 106HTH is a universal direct weather loudspeaker system designed for use in both marine environments and in general purpose inland environments. The 106HTH utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 106HTH to be used in ocean front and cruise ship applications, as well as in all other general purpose direct weather installations. The 106HTH also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 50 watt autoformer that presents input taps of 50 Watts, 25 Watts, and 12.5 Watts. The Lo Z mode is 8- ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 106HTH offers superb intelligibility and extended bandwidth, as well as superior system dynamics. The 106HTH is a two-way design featuring a wide coverage pattern of 110 degrees by 70 degrees. This low Q pattern is ideal for short throw applications and near field sound reinforcement applications. The high frequency wave guide provides optimal loading for the true compression driver. The use of a true compression driver allows the 106HTH to produce excellent system dynamics. The high frequency driver features very low distortion and superior upper vocal range intelligibility. The 6.5 inch nominal diameter low frequency component features a very large voice coil diameter, insures high reliability and excellent linearity. The One Systems 106HTH includes a 316 (marine-grade) stainless steel U-bracket. The enclosure also features 4 each M5 rigging points on the back of the enclosure. These rigging points may be used with the One Systems PT-10/M or the PM-2M pole mount system. The enclosure is an injection molded design that utilizes a high impact copolymer material that exhibits superior weather resistance. The 106HTH is available in either black or white color. Both color options are stabilized for ultra violet exposure. The 106HTH features a three-layer “rain shield” grille design and an input weather cover with water proof gland nut. The overall ingress protection is rated at IP56.

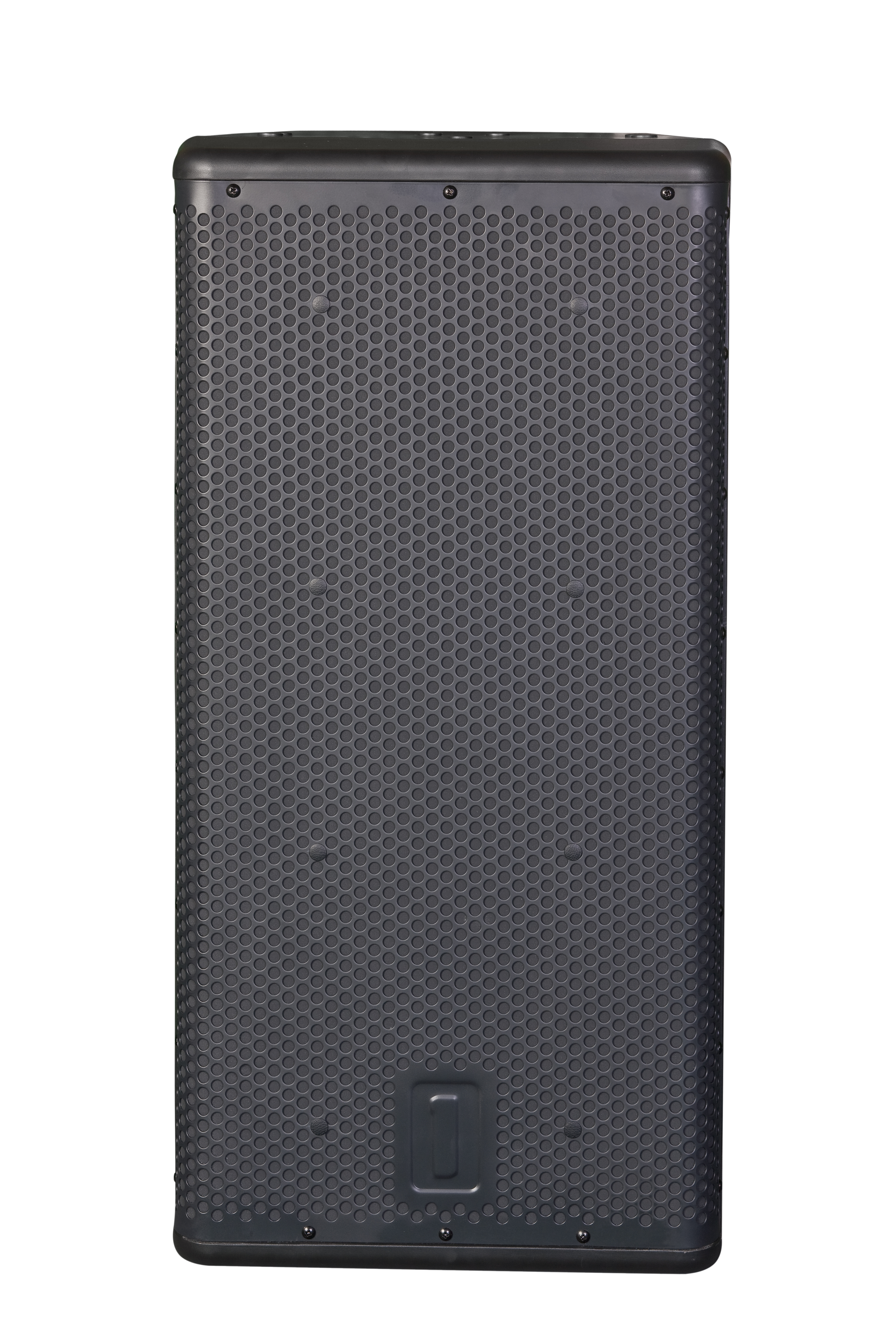

The One Systems 112HTH is a universal direct weather loudspeaker system designed for use in both marine environments and general purpose inland environments. The 12-inch two-way design provides high level acoustic radiation and extended low frequency response from a compact enclosure. The 112HTH utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine- grade powder coat over 304-grade stainless steel. This allows the 112HTH to be used in ocean front and cruise ship applications, as well as in general direct weather installations. The 112HTH also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 1 50-watt autoformer that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8 ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 112HTH offers a large format titanium compression driver and high order filtering to provide superb intelligibility, extended bandwidth, as well as superior system dynamics. For extended bandwidth applications, the 112 HTH may be coupled with the 118HSB in a bi-amp configuration to provide full bandwidth operation at very high sound pressure levels and with a very small footprint.

The One Systems 108HTC is a universal direct weather loudspeaker system designed for use in both Marine environments and general purpose inland environments. The 8 inch coaxial design provides point source acoustic radiation from a compact enclosure. The 108HTC utilizes 316- grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 108HTC to be used in ocean front and cruise ship applications, as well as in general direct weather installations. The 108HTC also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 150-watt autoformer that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8-ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 108HTC offers a medium-format titanium compression driver and high-order filtering that provides superb intelligibility, extended bandwidth, as well as superior system dynamics. The 108HTC is optimized for outdoor short throw to medium throw applications such as theme parks, parade routes, baseball and football stadiums, and other entertainment/sports venues where permanent installation is required. The 108HTC is a very versatile design that offers high performance in a small physical package.

The 118HSB is a light weight copolymer based all weather loudspeaker system. The 118HSB may be used in direct weather outdoor installations, as well as indoor applications where extended low frequency response is required. The 118HSB is a compact design that features a One Systems 18I/O 18-inch (457mm) extended bass transducer. The 118HSB is available in both black and white color options. The 118HSB is optimized for outdoor applications such as theme parks, parade routes, football and baseball stadiums, as well as other entertainment and sports venues where permanent installation and extended low frequency response are required. The high acoustic output to size ratio makes the system ideal for pole mounted and wall mounted applications. The 118HSB is also well suited for general purpose indoor applications in multipurpose rooms, indoor sports venues, and vocal intensive applications. The 118HSB utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 118HSB to be used in ocean front and cruise ship applications, as well as in general direct weather installations The grille is a 3-layer “rain shield” design that will minimize direct rain contact with the system’s transducers. The system ingress protection is IP 45 in normal mode and IP 56 when the vent plugs are installed. The input section consists of a 5-pin barrier strip. A weather cover is provided with an integral gland nut connector for outdoor applications. The gland nut is weather proof and is rated NEMA 6P (IP 68). The connector will accommodate cable outside diameters from 7mm to 12mm (0.236” to 0.472”). The maximum diameter will accommodate most 2 conductor AWG 12 cable assemblies. Because the One Systems 118HSB is designed for permanent installation applications, a variety of rigging and suspension options are available. The 118HSB has multiple M10 mounting points. The weight of the 118/HSB is 33 kg (72.8 lb.). The 118HSB may be mounted in selected installations (when permitted by local codes and appropriate substrates) using either a One Systems pan and tilt bracket (PT76/M) or the PM4/M pole mount system. The PT76/M is used when flat surface mounting is specified. The 118HSB-U/M U-bracket may also be used.

The One Systems 104HTH is a universal direct weather loudspeaker system designed for use in both marine environments and general purpose inland environments. The 104HTH utilizes 316- grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine- grade powder coat over 304-grade stainless steel. This allows the 104HTH to be used in ocean front and cruise ship applications, as well as in other general purpose direct weather installations. The 104HTH also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 50-watt autoformer that presents input taps of 50 Watts, 25 Watts and 12.5 Watts. The Lo Z mode is 8- ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 104HTH offers superb intelligibility and extended bandwidth, as well as superior system dynamics. The 104HTH is a two-way design featuring a wide coverage pattern of 110 degrees by 80 degrees. This low Q pattern is ideal for short throw applications and near field sound reinforcement applications. The elliptical wave guide provides optimal loading to the high frequency driver. The 4.5 inch nominal diameter, low frequency component features a very large voice coil diameter, insures high reliability and excellent linearity.

The One Systems 108HTH is a universal direct weather loudspeaker system designed for use in both marine environments and general purpose inland environments. The 8-inch two-way design provides excellent acoustic radiation from a compact enclosure. The 108HTH utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 108HTH to be used in ocean front and cruise ship applications as well as in general direct weather installations. The 108HTH (USA) also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 150-watt autoformer that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8 ohms. The simple configuration process is found on the third page of the product data sheet. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 108HTH offers a medium format titanium compression driver and high order filtering to provide superb intelligibility, extended bandwidth, as well as superior system dynamics. The 108 HTH is optimized for outdoor short-throw to medium-throw applications such as theme parks, parade routes, baseball/football stadiums, and other entertainment/sports venues where permanent installation is required. The 108 HTH is a very versatile design providing high performance in a small physical package. The 108HTH is a two-way design that features rotatable and interchangeable high frequency horns. The 108HTH has a rotatable 60 x 40 degree horn installed and is also shipped with a wide coverage pattern 105 x 60 horn that is also fully rotatable. The medium Q, 60 x 40 pattern, is ideal for medium-throw applications and where venue or space acoustics require a tighter high frequency pattern. The 105 x 60 high frequency wave guide provides broad dispersion. The 8-inch nominal diameter low frequency component features a very large voice coil diameter. insures high reliability and excellent linearity. The One Systems 108HTH features 7 each M8 rigging points on the enclosure. These rigging points may be used with the One Systems PM3/M pole mount system or the PT38/M rigging brackets. The PT38/M is used for flat surface mounting. An optional U-bracket, the 108HTH-U/M is also available as an accessory. The enclosure is an injection molded design that utilizes a high impact copolymer material that exhibits superior weather resistance. The 108 HTH is available in either black or white color. Both color options are stabilized for ultra violet exposure. The enclosure also features a three layer “rain shield” grille design and an input weather cover with water proof gland nut. The system ingress protection is IP 45 in normal configuration and IP 56 when the vent plugs are installed.
