From basic announcements to DSP-supported capturing of multiple participants in a meeting room: With our microphone solutions, voices are perfectly transmitted in any application - may it be mobile with a handheld transmitter or headset, via a paging station on a table or in fixed ceiling installations.

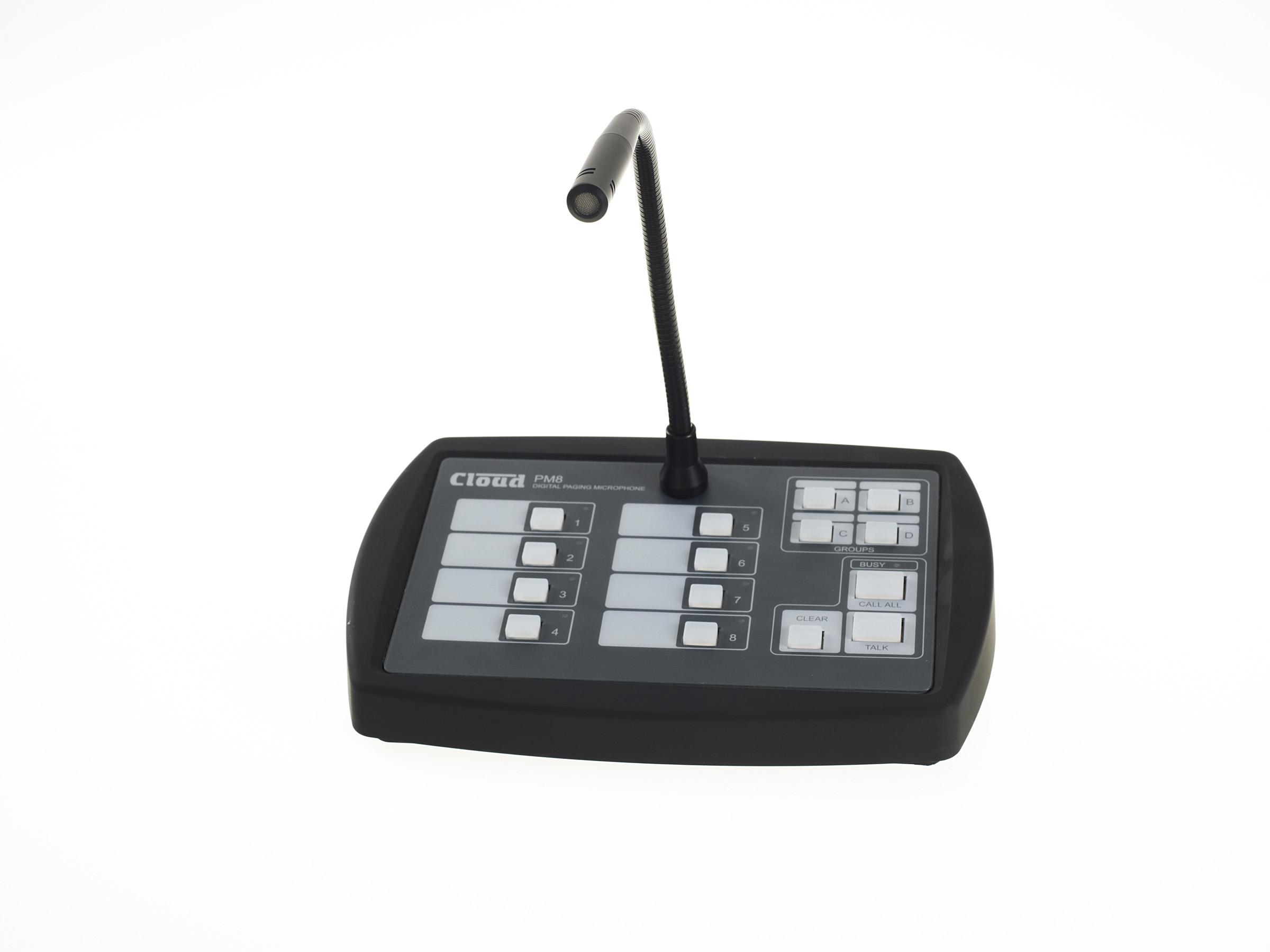

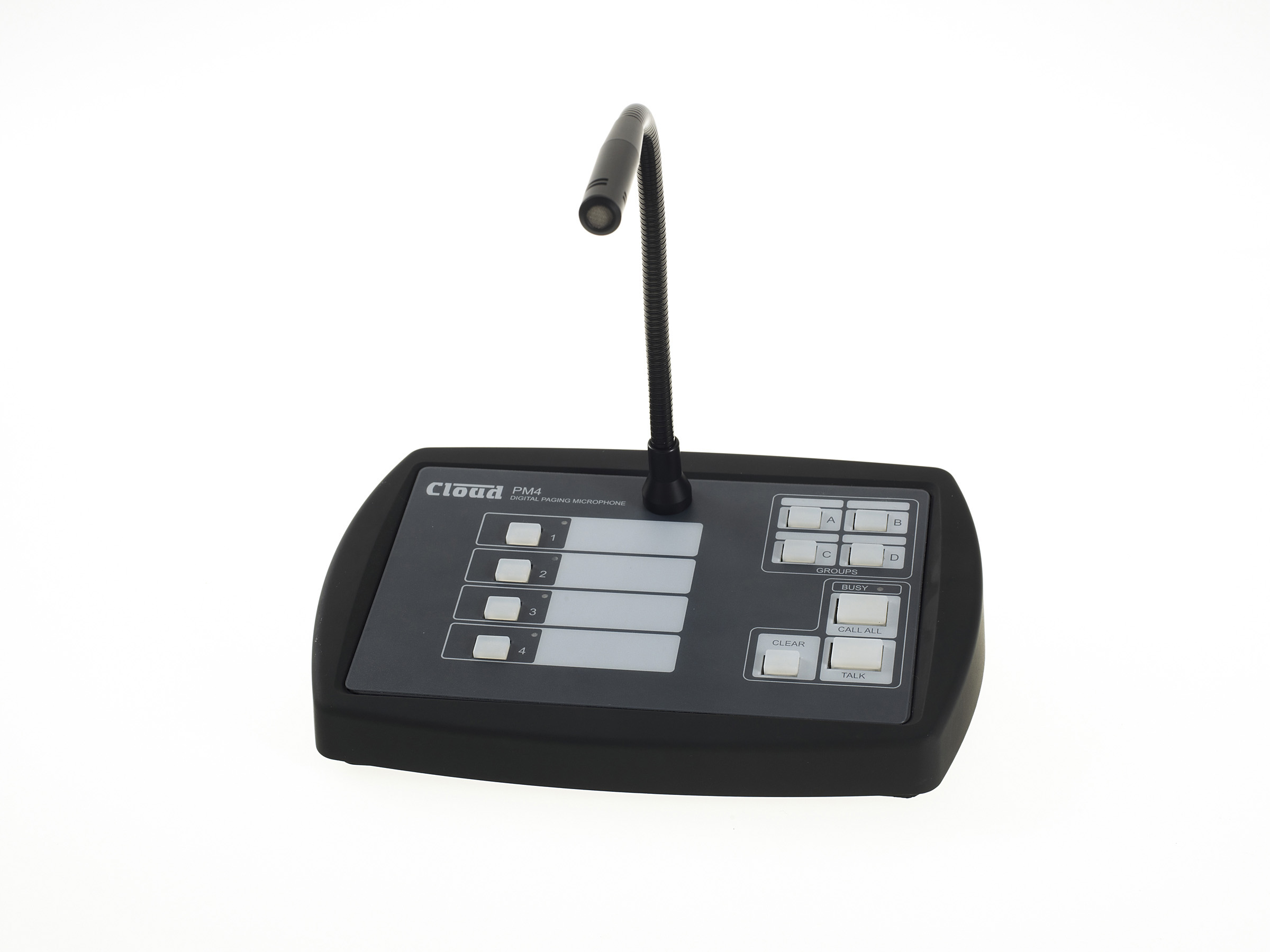

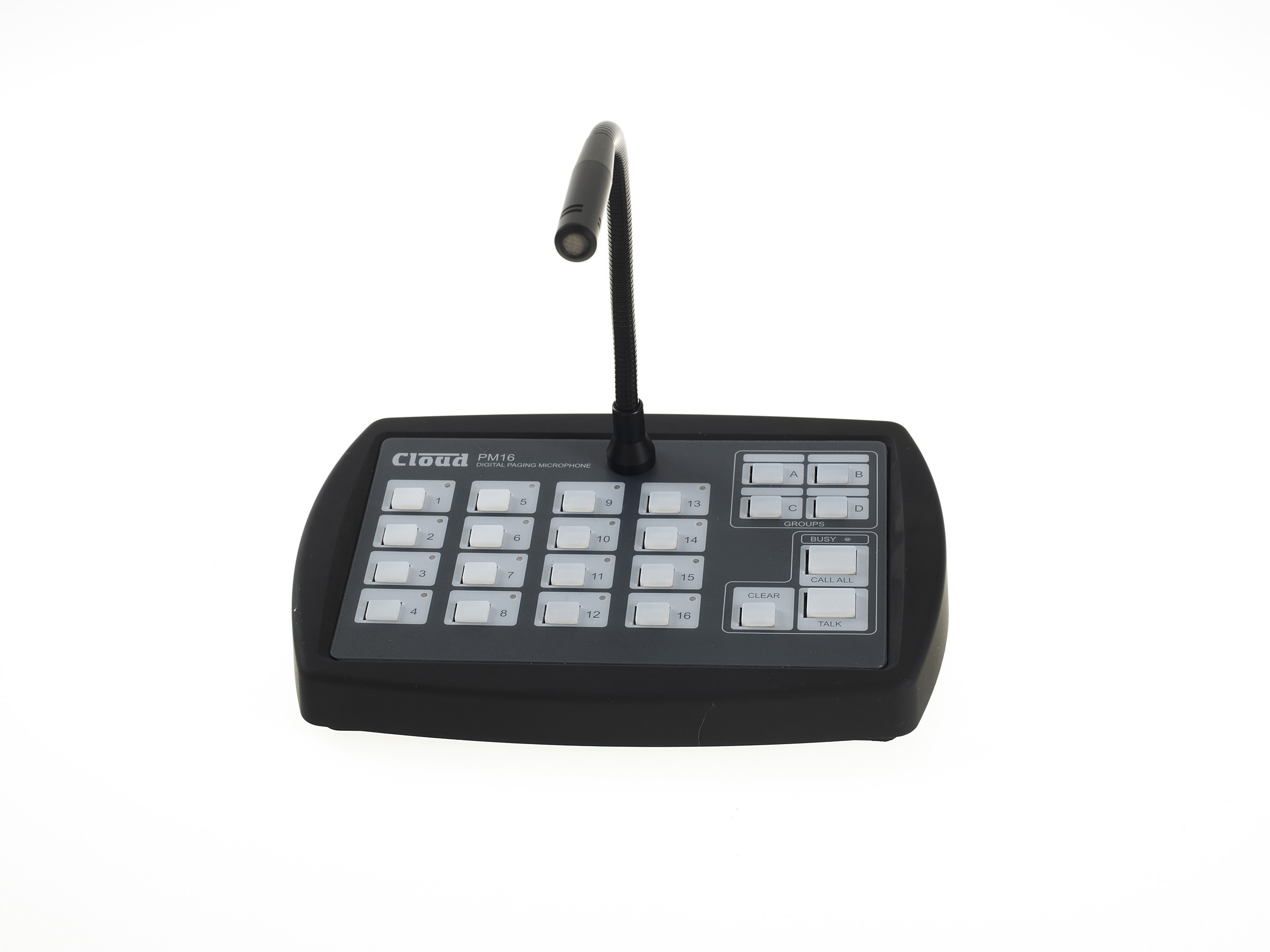

The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
The Cloud PM1 is a passive paging microphone for simple, single zone applications. It is ideal for use with any Cloud zoner and mixer-amplifier where single zone paging is required, but may also be used with any 3rd party zoners etc. Its heavy-duty moulded base and 300mm gooseneck mic give it a modern, attractive appearance, yet it is extremely robust for everyday use (ideal for use behind bars in restaurants and other licensed premises).
Connections are provided for wiring the mic audio signal and access contacts. The PTT button unmutes the mic and provides contacts (NO or NC) for the host device's access connector.
The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.

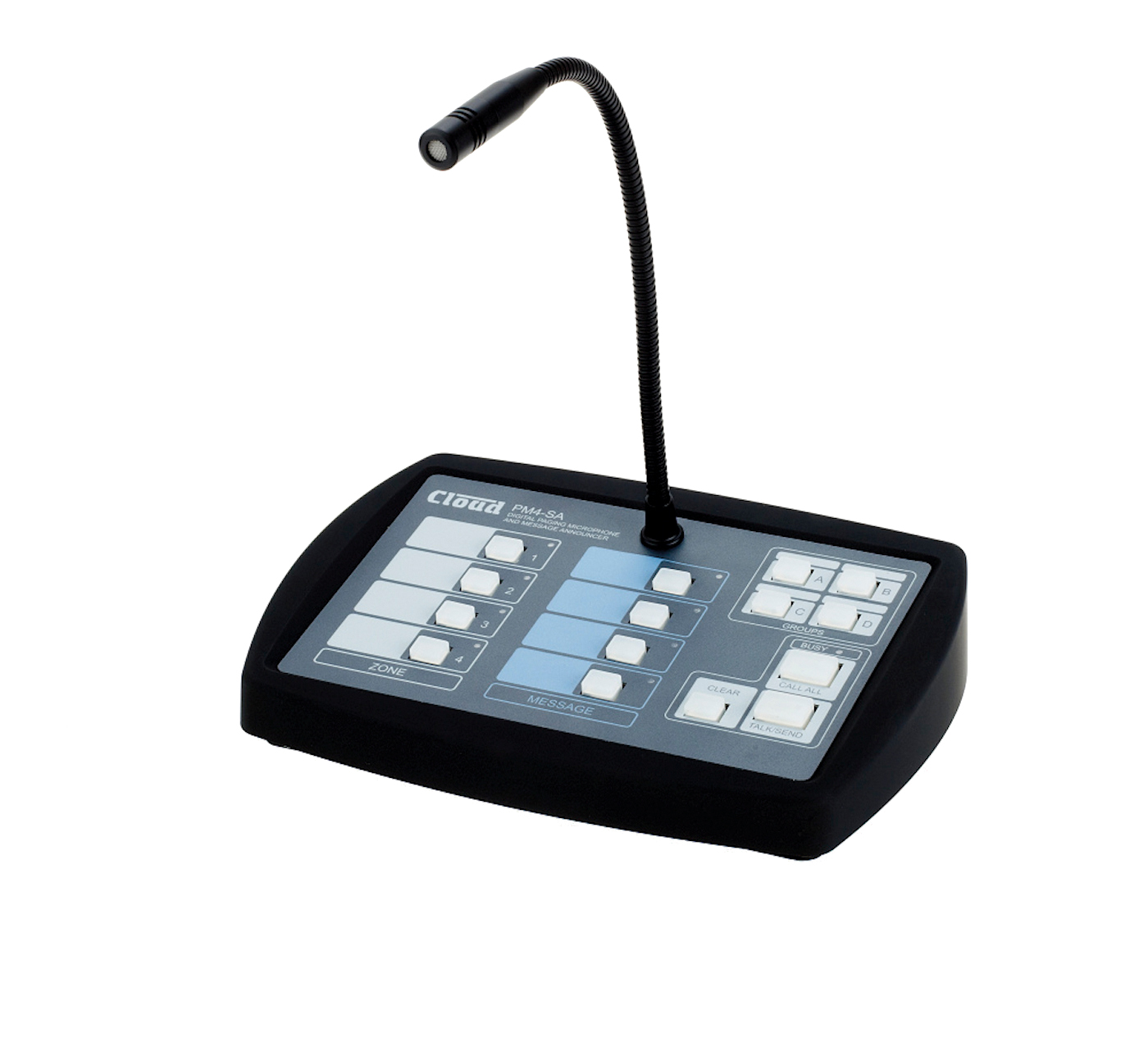

The Cloud PM4-SA Mutizone Paging Microphone with 'Spot Announcer' capability offer reliable paging microphone performance with the added functionality of pre-recorded message announcement capability.
Up to eight pre-recorded messages, of any length, can be stored internally on a standard SD memory card, plugged into a dedicated card slot and accessed through the base plate of the PM-SA unit.
A 'Group' function allows an individual message and a number of zones to be grouped together which allows single-button playback of individual messages to a specified number of zones, handy for regular announcements. The 'Group' function can also be remotely triggered by remote timers, PIR's, Camera's and DVR's using a NO/NC contact.
Messages for announcement and pre-announcement chime sound files (.WMA or .MP3) need to be prepared on a computer with a SD card slot, and then saved to the SD card. For operational and security reasons messages cannot be overwritten by the paging microphone.
An SD card is supplied with each PM-SA unit, with pre-announcement chime sound files already loaded.
The Cloud PM4-SA Mutizone Paging Microphone with 'Spot Announcer' capability offer reliable paging microphone performance with the added functionality of pre-recorded message announcement capability.
Up to four pre-recorded messages, of any length, can be stored internally on a standard SD memory card, plugged into a dedicated card slot and accessed through the base plate of the PM-SA unit.
A 'Group' function allows an individual message and a number of zones to be grouped together which allows single-button playback of individual messages to a specified number of zones, handy for regular announcements. The 'Group' function can also be remotely triggered by remote timers, PIR's, Camera's and DVR's using a NO/NC contact.
Messages for announcement and pre-announcement chime sound files (.WMA or .MP3) need to be prepared on a computer with a SD card slot, and then saved to the SD card. For operational and security reasons messages cannot be overwritten by the paging microphone.
An SD card is supplied with each PM-SA unit, with pre-announcement chime sound files already loaded.
