The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

The CX263 is the ideal solution for leisure, licensed and retail venues. This compact unit has 6 line level inputs and 2 mic inputs with paging microphone access on Mic 1. The CX263 has one stereo and two mono zones. The line inputs and mics can be independently routed to any output zone via the front panel controls, alternatively the music signals on each zone can be controlled remotely by the RL-1 (level only) or RSL-6 (source and level). Additional remote control functions can be provided by the optional serial interface card (RS232) CDI-S200 shown fitted on the rear panel which can control the music level and source on each zone, access for Mic 1 on each zone, and access for Mic 2 on each zone. This compact unit is easy to install and operate but has the flexibility to provide a solution for many differing environments.

The Cloud MX155 is a cost-effective, rackmounting (1U) stereo audio mixer for use in all types of commercial premises. It is simple to install and operate and provides a useful range of features and configuration options. The mixer has five primary channels, each of which has a balanced mic input and an unbalanced stereo line input: all connections are on the rear panel. There is a further stereo auxiliary line input, with both a balanced rear panel input and an unbalanced 3.5 mm TRS jack on the front panel allowing easy connection of tablets, laptops, etc. An additional, independent mic input channel is also routed to the main output; this channel features adjustable VOX detection to allow paging use, with voice-over-programme ducking. VOX threshold is adjustable via a rear panel preset control and the depth of ducking adjustable from the front panel. The front panel provides level and HF/LF EQ controls for each of the five main channels and the mic channel; a level control for the auxiliary line input is also fitted. 15 V phantom power is available at all mic inputs, selected by internal jumpers. The stereo output of the mixer is balanced: the front panel has an output level control and an LED bargraph meter. A rear panel switch converts the output for mono operation. Headphone monitoring of the main output is available on the front panel, with an independent headphone volume control. Installers can set the maximum level of the main output via a rear panel preset control, to prevent inadvertent overloading of power amplifiers or damage to loudspeakers. The mixer has an additional unbalanced stereo line output carrying the main mix: VOX ducking affects this output, but the level is independent of the master output level control. To aid compliance with PA-VA regulations, the MX155 has a dedicated emergency input (balanced): when a signal is detected at this input, all other inputs are muted and the emergency input routed directly to the mixer output. An internal jumper determines whether the mic channel should remain unmuted in this situation; this allows it to be used for announcements in an emergency. In common with most other Cloud products, a Music Mute control input is fitted; short-circuiting the terminals here will also activate the emergency muting circuitry.

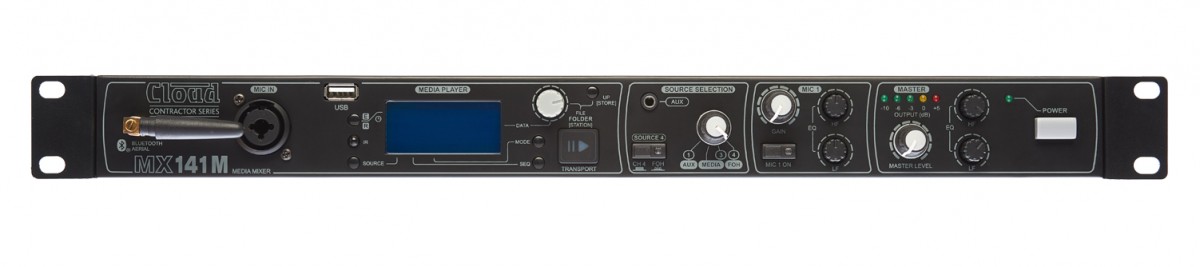

The Cloud MX141M is a cost-effective, rackmounting (1U) stereo audio mixer/media player ideal for use in all types of commercial premises. It is simple to install and operate and provides a useful range of features and configuration options. It combines an audio mixer for one of four stereo music sources plus a microphone: one of the music sources is an on-board media player which incorporates both Bluetooth® wireless technology and an FM tuner. The MX141M is supplied with an infrared remote control for the media player functions and is the perfect centrepiece for commercial sound systems in hospitality and fitness centre applications. The mixer has three unbalanced pairs of line inputs for external stereo music sources with connections on the rear panel: Input 1 also has a 3.5 mm TRS jack input on the front panel allowing easy connection of tablets, laptops, etc. Input 2 is dedicated to the internal media player/FM tuner. Input 4 is provided with an alternative, balanced pair of inputs, to permit the unit to be fed from a mixing console or other part of a separate sound system. A front panel switch selects the active line input. The MX141M has a single mic input on the front panel in the form of a “Combi type” socket which can accept either XLR or ¼” TRS jack plus. The mic signal is mixed with the selected music source; controls for level, mic on/off and HF/LF EQ are on the front panel. 12 V phantom power is available at the mic input, enabled by an internal jumper. The stereo output of the unit is available on the rear panel in balanced form on both a plug-in multipin connector and two ¼” TRS jack sockets, and also in unbalanced form on a pair of phono sockets (RCA jacks). The front panel has an output level control, HF/LF EQ adjustment and an LED bargraph meter. Installers can set the maximum level of the main outputs via a rear panel preset control, to prevent inadvertent overloading of power amplifiers or damage to loudspeakers. The unit also has an additional unbalanced stereo line output carrying the pre-fade main mix signal. The MX141M’s integral media player plays MP3 files from FAT32-formatted USB memory sticks of up to 16 GB capacity. Most common sample rates from 128 kbps to 320 kbps are allowed and up to 2,000 files can be handled. A multifunction alphanumeric LCD display and a simple set of front panel controls allow folder navigation, file selection, random/sequential play mode and most other standard player functions. The media player will also stream stereo audio from compatible devices using Bluetooth wireless technology. A Bluetooth antenna (aerial) is included with the unit: this is plugged into a front panel socket. The media player also incorporates an FM tuner with nine station memories. An FM aerial socket is fitted to the rear panel. To aid compliance with PA-VA regulations, the MX141M has a dedicated emergency input (balanced): when a signal is detected at this input, all other inputs are muted and the emergency input routed directly to the mixer output. An internal jumper determines whether the mic channel should remain unmuted in this situation; this allows it to be used for announcements in an emergency. In common with most other Cloud products, a Music Mute control input is fitted; short-circuiting the terminals here will also activate the emergency muting circuitry.

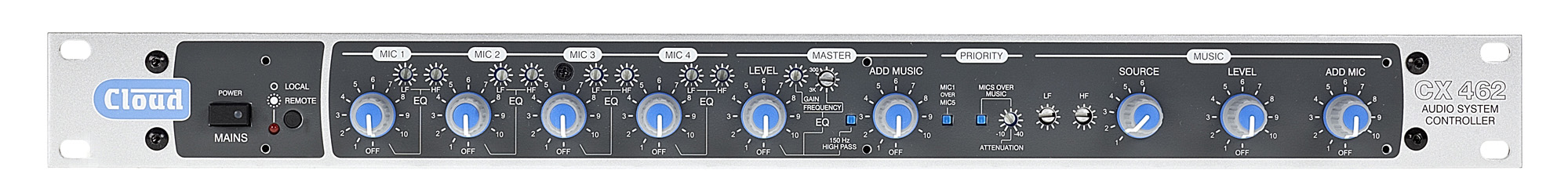

"Unique" best describes the CX462 Audio System Controller. We have included a set of features and configuration options that bring great diversity and make the unit the appropriate choice for applications such as AV presentations, places of worship, plus other sound systems often found in hotels, shops, bars and leisure venues.

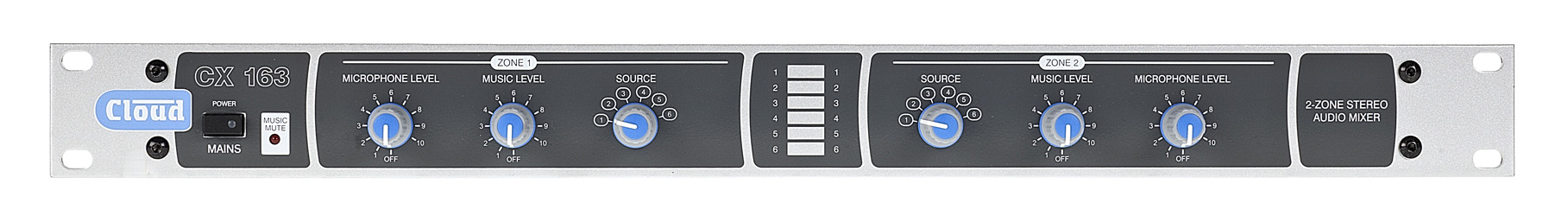

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.

The Z4MK4 is a complete solution for multi-zone, multi functional venues. With the ability to accept an array of input sources such as MP3, Hardisc, CD, Video, Satellite etc., the Z4MK4 is an ideal choice. It has been developed specifically to meet these needs and can act as a user friendly master control for the entire sound system. Connecting the LM-2 or LM-2A active modules extends the versatility of the units allowing designers to provide simple, cost effective solutions to many customers' requirements that are difficult to achieve with other manufacturers' products. The Z4MK4 offers direct connection of up to six music sources, two microphones and a paging mic, all of which can be selected to operate in up to four different output zones, in any combination. The MK4 version includes RJ45 THRU/IN terminals for simple connection of Cloud Digital Paging Microphones and the addition of four balanced inputs add to the flexibility and increased installer friendliness.

The Z8MK4 is a complete solution for multi-zone, multi functional venues. With the ability to accept an array of input sources such as MP3, Hardisc, CD, Video, Satellite etc., the Z8MK4 is an ideal choice. It has been developed specifically to meet these needs and can act as a user friendly master control for the entire sound system. Connecting the LM-2 or LM-2A active modules extends the versatility of the units allowing designers to provide simple, cost effective solutions to many customers' requirements that are difficult to achieve with other manufacturers' products. The Z8MK4 offers direct connection of up to six music sources, two microphones and a paging mic, all of which can be selected to operate in up to eight different output zones, in any combination. The MK4 version includes RJ45 THRU/IN terminals for simple connection of Cloud Digital Paging Microphones and the addition of four balanced inputs add to the flexibility and increased installer friendliness.

The DCM1e is a Ethernet version of the popular DCM-1 Digital Control Zone Mixer. The addition of an Ethernet port on the rear panel of the DCM1e allows its in-built Ethernet web-server to be connected via an RJ-45 socket to an independent or existing wireless router. This feature means the DCM1e can be configured and controlled remotely by any mobile device or PC connected to the network. Using the web browser of any mobile End Users have "limited installer defined" controls via simple and intuitive interface pages. Installers have administrator status via "Configuration Options" which are password protected. The DCM-1e provides any space-conscious sound installation with a high level of flexibility. It is ideal for contractors/installers who require flexible routing of line & mic signals. The analogue zoner, with its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers. Optional active input modules extend the flexibility further. The DCM-1e is a microprocessor controlled multi zoner. With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM-1e has the traditional simplicity of Cloud products, with far greater functionality.

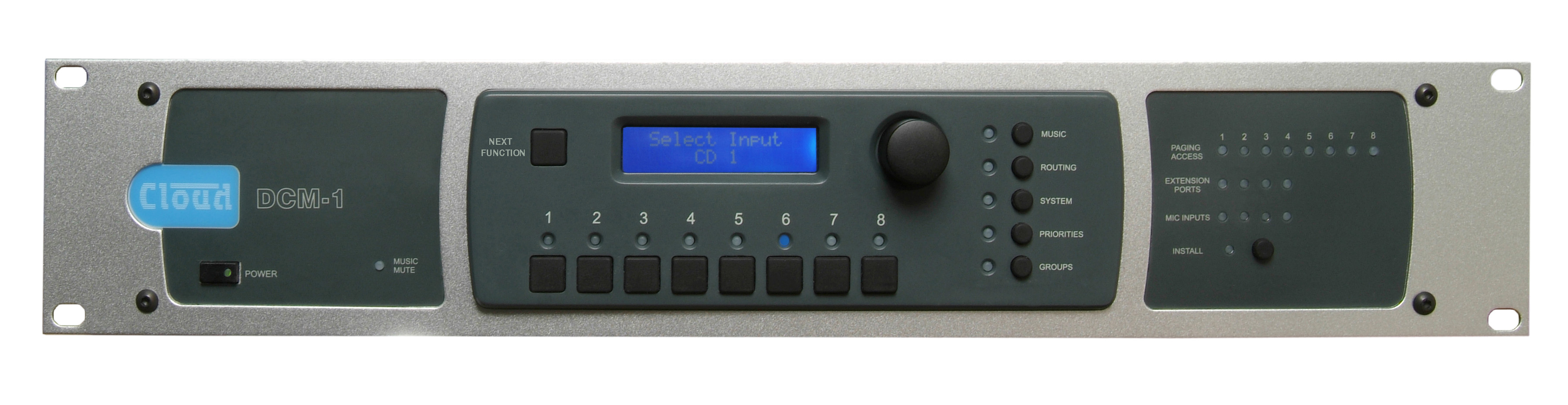

The DCM-1, provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC. It is ideal for contractors/installers who require flexible routing of line & mic signals. The analogue zoner, with its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers. Optional active input modules extend the flexibility further. The DCM-1 is Cloud's first ever microprocessor controlled multi zoner. With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM-1 has the traditional simplicity of Cloud products, with far greater functionality. A free PC-Software allows complete configuration of inputs, microphone priorities, system and paging mic priority set up and Installer Key (password) changes. Using the intuitive front panel control of the DCM-1 or using the DCM-1 Utility Tool allows quick and easy set up of the DCM-1 Digitally Controlled Mixer.
