Mixers & Matrix Systems
The more sources and signals come together, the more versatile audio solutions are needed for flexible processing and distribution - whether in public areas or in a corporate environment. Our preamplifiers, mixers and matrixes are used in multi-zone installations, venues and conferencing applications.
Sort by:
Dateq

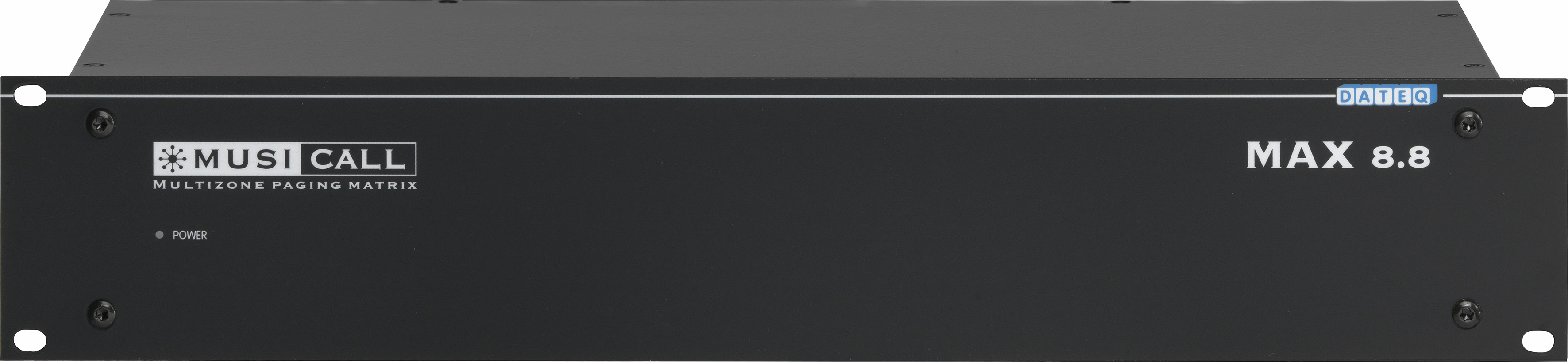

MAX-8.8
The Musicall paging system is an audio distribution system, capable of distributing multiple sources into 8 or up to 16 independent zones. Using the control units (MRC) or the internal webpage, each zone can remotely select it’s own audio source and volume setting.
The MAX8.8 is the standard central matrix. It provides 8 stereo/mono zones, 8 stereo / 16 mono RCA inputs and optional 8 local audio inputs. Each can be equipped with it’s own MRC wall controller and MRA local audio input.
The Matrix can be easily configured using the internal webserver and configuration interface. The configuration interface allows easy adjustments of input sensitivity and equalizer settings, source and program names and system power up defaults.
MAX8.8 is configurable for nearly all applications where Paging and Music is needed.
Dateq
MAX-8.8D
The Musicall paging system is an audio distribution system, capable of distributing multiple sources into 8 or up to 16 independent zones. Using the control units (MRC) or the internal webpage, each zone can remotely select it’s own audio source and volume setting.
The MAX8.8D is the DAB+ central matrix. It provides 8 stereo / mono zones, 3 stereo / 6 mono RCA inputs and optional 8 local audio inputs. Each can be equipped with it’s own MRC wall controller and MRA local audio input.
The Matrix can be easily configured using the internal webserver and configuration interface. The configuration interface allows easy adjustments of input sensitivity and equalizer settings, source and program names and system power up defaults.
MAX8.8D is equipped with a quadruple DAB+/ FM and web stream tuner. It not only allows to receive DAB+ and FM radio stations, but also gives the option to pre listen all audio sources available within the matrix. The DAB+ and FM tuner is equipped with a 3.5" resistive touch panel to ensure easy control.
MAX8.8D is configurable for nearly all applications where Paging and Music is needed.
Dateq
MAX-8.16
The Musicall paging system is an audio distribution system, capable of distributing multiple sources into 8 or up to 16 independent zones. Using the control units (MRC) or the internal webpage, each zone can remotely select it’s own audio source and volume setting.
The MAX8.16 is the standard central matrix. It provides 8 stereo / 16mono zones, 8 stereo / 16 mono RCA inputs and optional 16 local audio inputs. Each can be equipped with it’s own MRC wall controller and MRA local audio input.
The Matrix can be easily configured using the internal webserver and configuration interface. The configuration interface allows easy adjustments of input sensitivity and equalizer settings, source and program names and system power up defaults.
MAX8.16 is configurable for nearly all applications where Paging and Music is needed.
Dateq
MAX-8.16D
The Musicall paging system is an audio distribution system, capable of distributing multiple sources into 8 or up to 16 independent zones. Using the control units (MRC) or the internal webpage, each zone can remotely select it’s own audio source and volume setting.
The MAX8.16D is the DAB+ central matrix. It provides 8 stereo / 16mono zones, 3 stereo / 6 mono RCA inputs and optional 16 local audio inputs. Each can be equipped with it’s own MRC wall controller and MRA local audio input.
The Matrix can be easily configured using the internal webserver and configuration interface. The configuration interface allows easy adjustments of input sensitivity and equalizer settings, source and program names and system power up defaults.
MAX8.16D is equipped with a quadruple DAB+/ FM and web stream tuner. It not only allows to receive DAB+ and FM radio stations, but also gives the option to pre listen all audio sources available within the matrix. The DAB+ and FM tuner is equipped with a 3.5" resistive touch panel to ensure easy control.
MAX8.16D is configurable for nearly all applications where Paging and Music is needed.
Dateq

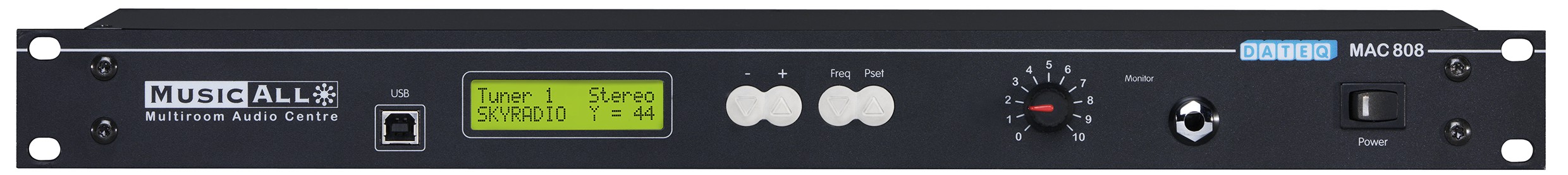

MAC808
DATEQ MAC808 is an "All-in-One" unit that combines all necessary functions with a 8-way Matrix and 8-Power Amplifiers each 30W. The MAC808 audio distribution system can control up to eight audio sources ans four internal FM-tuners and distribute it over up to eight amplified zones. Using the MRC wall controllers every zone can be controlled from the room, selecting the audio level and source.
The MAC808 can be remotely controlled using a PC or laptop by connecting the MAC808 to a local network. Using the internal webserver the MAC808 can be fully configured.
MAC808 is a complete solution for offices, in the workshop, hospitals, retirement home, Dentals etc. Everywhere a compact installation is needed for Listening music, Background music or Music for Masking purposes. Paging makes the system complete.
