Wall Connection & Control Panels
Wall panels provide a convenient interface between the end user and installed technology, enabling volume control, connecting external sources and more. Our wall-mounted connection and control panels support a diverse range of input formats and, thanks to the comprehensive mounting accessories, blend in almost anywhere.
Sort by:
AUDAC
WP210
The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
The WP210 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Color:
Black
Color
AUDAC
WMI18
The WMI are flush mountable Wall Microphone Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with a Female XLR input connector on the front side and a terminal block connector on the rear side. The signal which is applied to the input connection is converted to a differential signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. A jumper on the rear side allows enabling of 15 Volts phantom power. It should be used in combination with a matching device on the receiver end.
Color:
White
Color
AUDAC
WP205
The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
The WP205 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.
Color:
Black
Color
AUDAC
CP45ARP/B
The CP4xARx allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 24V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. CP4xARx is available in two sizes: 43 x 43 mm and 45 x 45 mm and compatible with AUDAC, Niko, Legrand, Bticino and other standard Mounting frames and cover plates.
AUDAC
CP43ARP
The CP4xARx allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 24V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. CP4xARx is available in two sizes: 43 x 43 mm and 45 x 45 mm and compatible with AUDAC, Niko, Legrand, Bticino and other standard Mounting frames and cover plates.
Color:
Black
Color
AUDAC
WLI18
The WLI are flush mountable Wall Line Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with two RCA connectors (stereo) on the front side and a terminal block connector on the rear side. The signal which is applied to the input connections is converted to a differential dual mono signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. It should be used in combination with a matching device on the receiver end.
Color:
White
Color
AUDAC

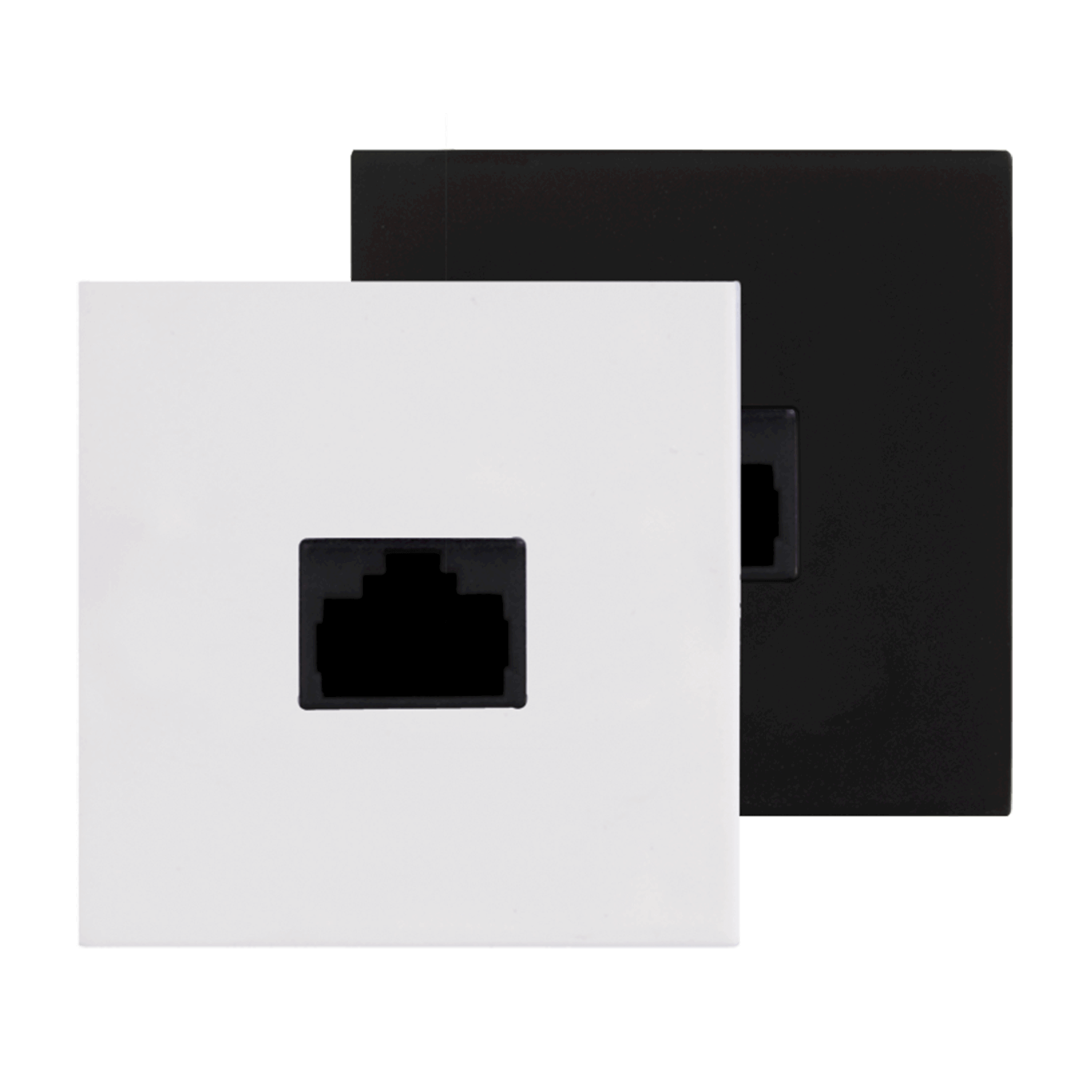

CP43ARJ
The CP4xARx allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 24V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. CP4xARx is available in two sizes: 43 x 43 mm and 45 x 45 mm and compatible with AUDAC, Niko, Legrand, Biticino and other standard Mounting frames and cover plates.
Color:
Black
Color
