Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

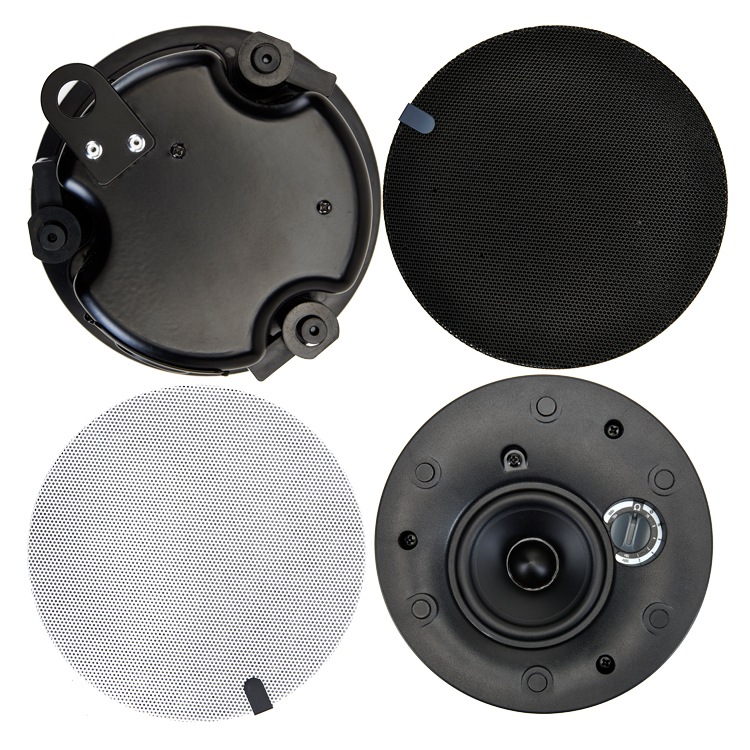

Shallow 3” 16 W In-Ceiling Loudspeaker

The Cloud CS-C3 In-Ceiling Speaker is a 3" full range loudspeaker featuring exceptional intelligibility and musical performance. Using premium components, the CS-C3 offers high musicality, with high intelligibility, prioritising bass response over sensitivity. The 3 inch woofer incorporates polypropylene driver and a butyl rubber surround for lasting, low distortion performance. The included 16 W transformer provides several tabs for 25 V / 70 V 100 V. The 16 ohm impedance allows for easy low impedance daisy chaining.

The CS-C3 incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grille is magnetically attached for easy installation, and features a completely seamless transition from grille to ceiling. For a different look a square or hexagonal grill is available as an option. The CS-C3 speakers offer discrete solutions for Retail, Hospitality, Leisure and Commercial.

Product Details

  • 3” in-ceiling loudspeaker
  • 3" Full Range Polypropylene Driver with Rubber Surround and Phase Plug
  • Premium driver and electronics for exceptional sound quality and intelligibility

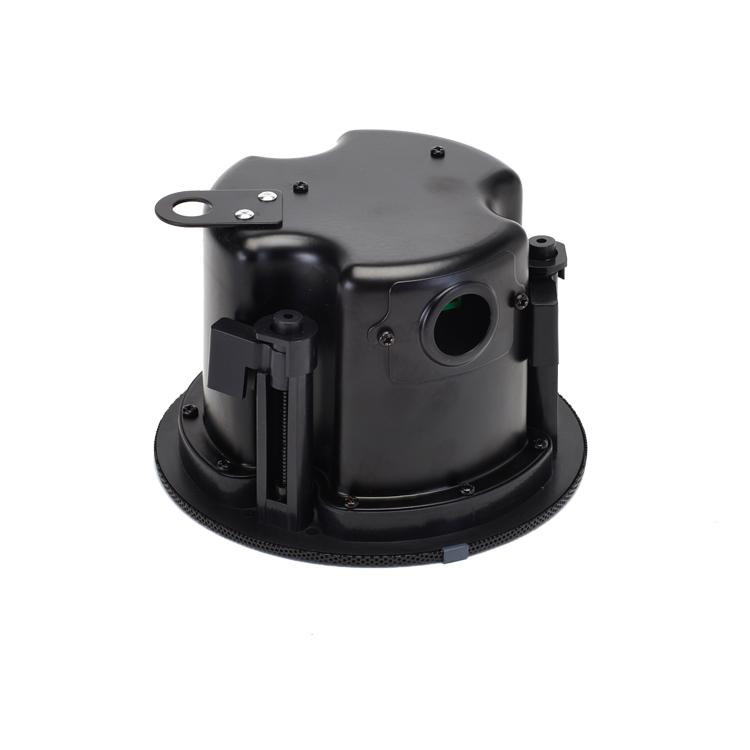

  • Low profile back can for installation into small ceiling voids.
  • Accessible high-impedance or low impedance switch settings.
  • Magnetic ZeroEdge™ grille with removable badge for discrete use.
  • Power handling: 16W, 8W, 4W, 2W @ 100 V or 16W @ 16Ω
  • SPL (1m): 82 dB (nominal), 94 dB (max)
  • Optional tile bridge.

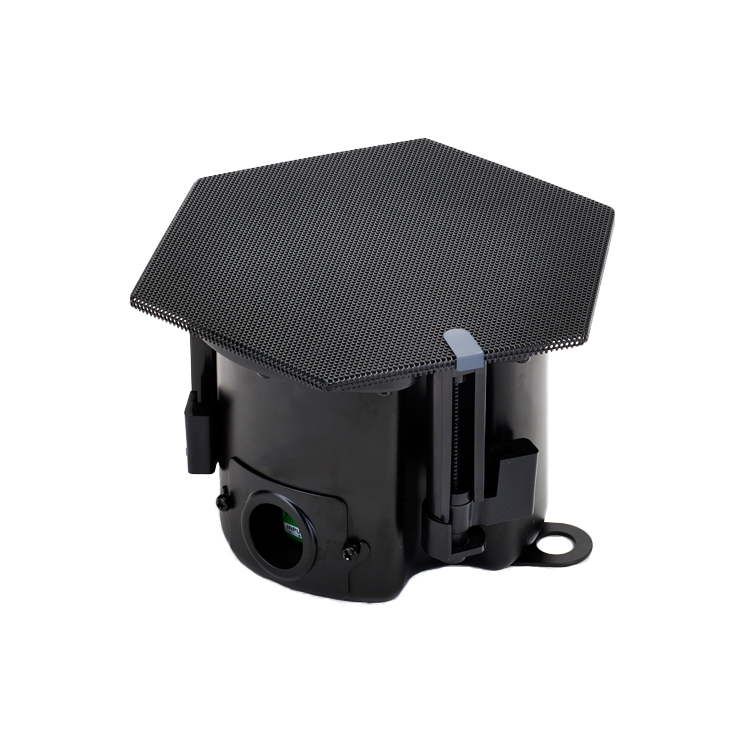

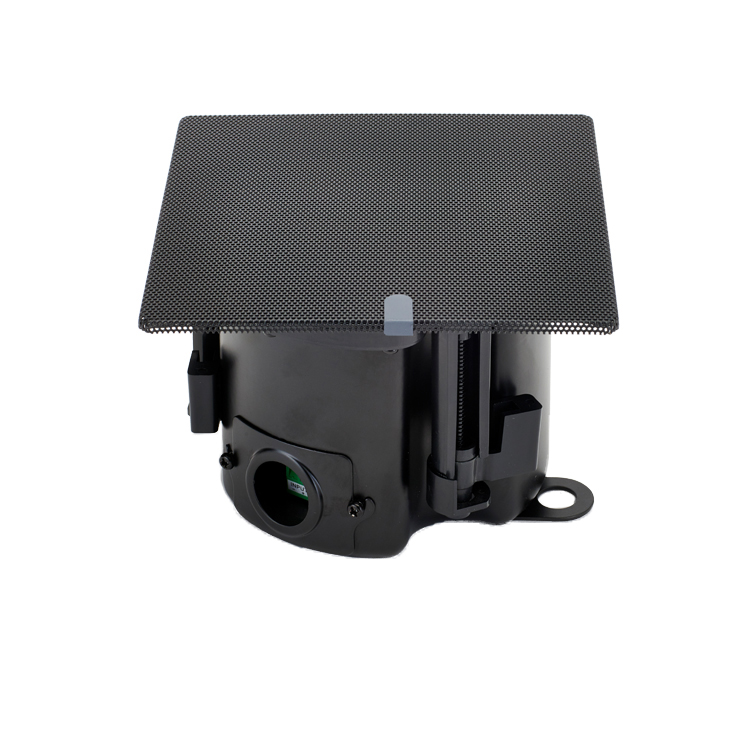

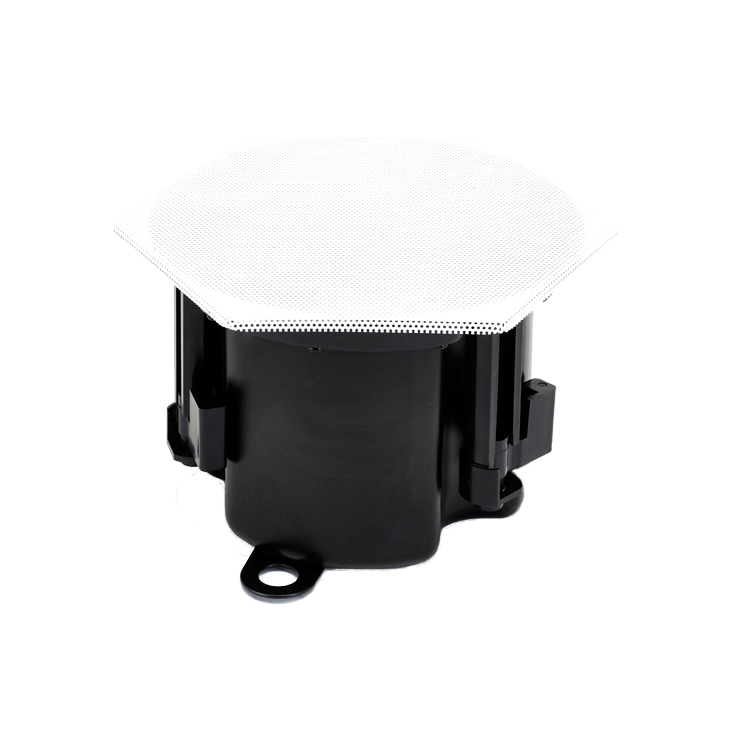

  • Optional: Square Grill (153.5mm x 153.5mm) or Hexagonal Grill (153.5mm x 177.3mm)
  • Grill color: black, white
Frequency response
140 Hz - 20 kHz
Impedance
16 ohm
SPL (1 W/1 m)
82 dB
Power handling
16 W
SPL (max)
94 dB
Transformer taps (100 V)
16W, 8W, 4W, 2W
Transformer taps (70 V)
16W, 8W, 4W, 2W, 1W
Transformer taps (25 V)
2W, 1W, 0.5W, 0.3W, 0.2W
Average coverage angle (2 kHz - 10 kHz)
90°
Woofer
3" Full Range Polypropylene Driver with Rubber Surround and Phase Plug
Input
4 pin Euroblock
Included accessories
Input cover plate, male Euroblock
Dimensions (D x H)
151.0mm x 101.4mm, Cutout 140 mm, Square Grill (153.5mm x 153.5mm), Hexagonal Grill (153.5mm x 177.3mm)
Weight
0.9kg
