CS-C4V | White | CS-C4VW

CS-C4V

Art.-Nr.: CS-C4VW

Color: White

Request now Project consulting

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

4" 2-Way In-Ceiling Speaker, 100 V

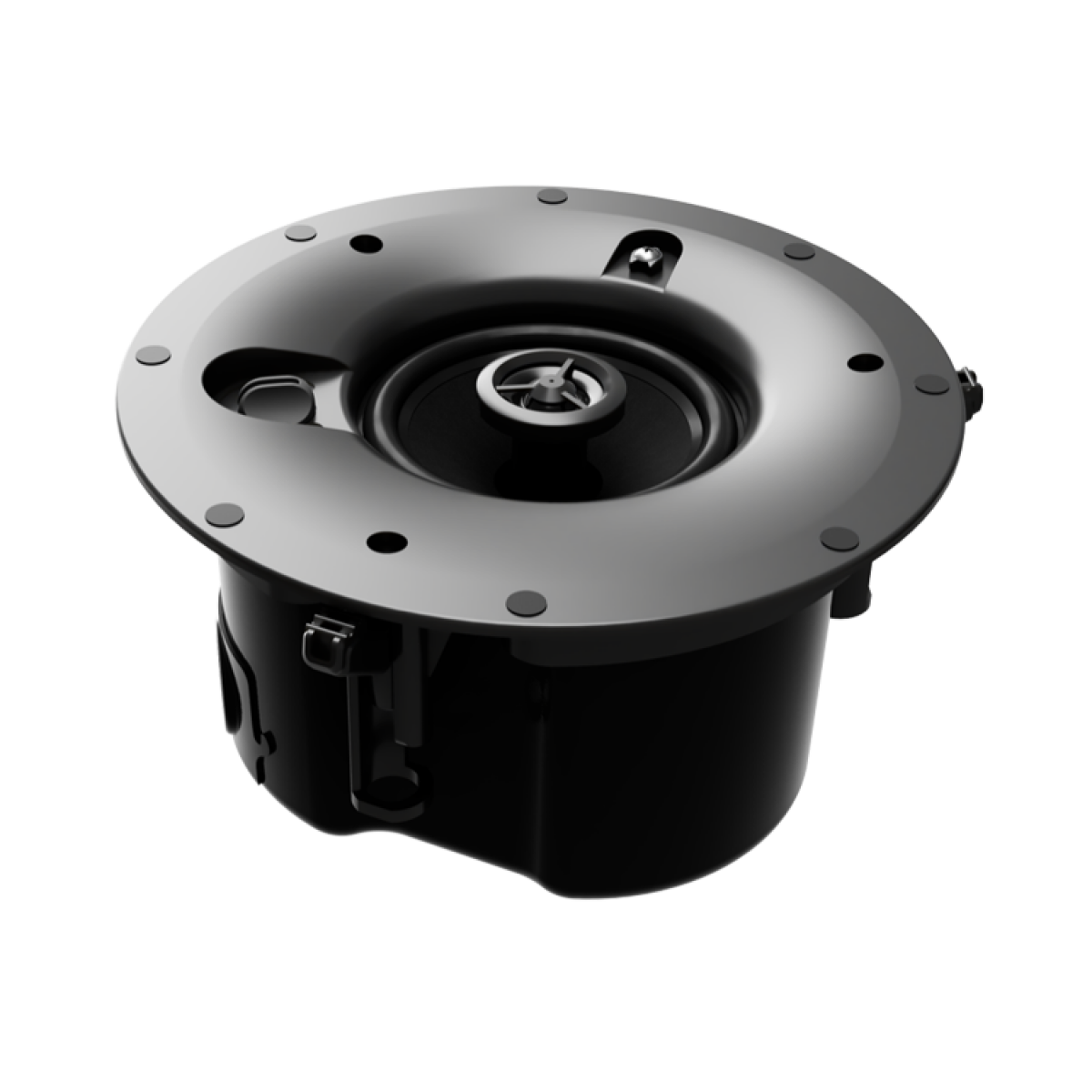

The Cloud CS-C4 is an 4 inch coaxial two way in-ceiling loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C4 offers high sensitivity, smooth frequency response, and excellent off axis performance. The 4.0 inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low distortion performance. The 0.5 inch tweeter is a silk soft dome to smoothly distribute the high frequency energy. The CS-C4V modell integralts a 20 W transformer with plenty of power even for high SPL applications. The 16 ohm impedance option allows for easy low impedance daisy chaining. CS-C4H has an impedance of 16 ohms and allows up to 4 speakers to be connected in parallel to a 4 ohm amplifier output.

The CS-C4 incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grilles are magnetically attached for easy installation, and feature a completely seamless transition from grille to ceiling. Round grilles are supplied, and are available in black or white finish. The 102 mm-deep back can offers premium acoustics in a shallow mount profile. The side cable gland means that no additional depth is required for cable entry.

The CS-C4H is identical to the CS-C4V in terms of components and performance, but features a corrosion resistant grille to make the loudspeaker suitable for installation in humid environments such as bathrooms.

Product Details

4" 2-Way In-Ceiling Speaker
4.0 inch treated paper with rubber surround and 0.5 inch silk dome with phase plug
Magnetic ZeroEdge™ grille with removable badge
Premium drivers and electronics for exceptional sound quality and intelligibility
Integrated high power transformer (CS-C4V)
Front mounted tap switch (CS-C4V)
100 V Transformer taps: 20, 10, 5, 2.5 W, plus 16 ohms (CS-C4V)
16 ohm impedance for low impedance daisy chaining (CS-C4H)
102 mm back can for installation into small ceiling voids
CS-C4H version optimised for installation in humid environments
4-pin quick connector for easy daisy-chaining and secure connections
Available colours: Black (RAL9011), White (RAL9003)

127 Hz -20 kHz (+/- 3dB), 84 Hz -20 kHz (-10dB)

16 ohms

5.0 kHz

86 dB

20 W

99 dB

109°

20, 10, 5, 2.5 W, plus 16 ohms (CS-C4V)

0.5 inch silk dome with phase plug

4.0 inch treated paper with rubber surround

4 pin Euroblock

Input cover plate, male Euroblock rubber insert (CS-C4V), Input cover plate, male Euroblock rubber insert, SECC corrosion resistant grille (CS-C4H)

Black (RAL9011), White (RAL9003)

1.62 kg (CS-C4V), 1.6 kg (CS-C4H)
