CS-SUB8
Art.-Nr.: CS-SUB8W
Color: White
Request now Project consulting

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

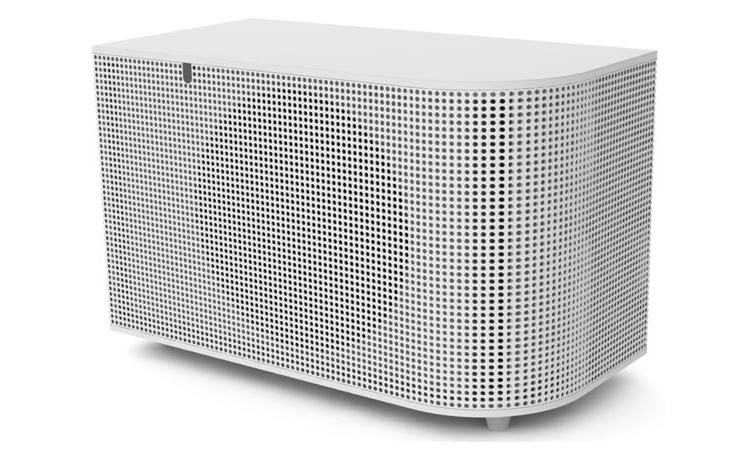

8” 100 V / 100 W Subwoofer

The Cloud CS-SUB8 is a versatile 8” Passive Surface or Shelf mount subwoofer, designed to add powerful bass responce to any mid SPL music system. Designed to compliment Clouds CS-S3 3" Surface speakers or CS-C3 In-Ceiling Speakers to form an outstanding Small Business System - ideal for Retail, Leisure and Hospitality applications. The CS-SUB8 offers high sensitivity, and excellent low frequency response. Availble in Black or White and optional Wall Mounting brackets for horizontal or vertical orientation. The CS-SUB8 can also be suspended via integrated eyebolt sockets or free standing on feet.

Product Details

  • Efficient 8" subwoofer for excellent bass extension
  • 8" Treated Paper Woofer with Rubber Surround
  • Accessible high-impedance or low impedance switch settings
  • Removable logos to allow for discrete use
  • Integrated high power transformer with bypass
  • 4 ohm for low impedance applications
  • 4-pin Euroblock connectors
  • Power handling: 100W, 50W, 25W, 13W @ 100 V or 100 W @ 16Ω
  • Standard rubber feet included
  • Optional forged eye bolts for hanging
  • Optional surface mount brackets
  • Color: black, white
Frequency response
74 Hz -200 Hz
Impedance
4 ohm
SPL (1 W/1 m)
87 dB
Power handling
100 W
SPL (max)
107 dB
Transformer taps (100 V)
100, 50, 25, 13 W
Transformer taps (70 V)
100, 50, 25, 13, 7 W
Transformer taps (25 V)
13W, 7W, 3W, 1.5W, 0.6 W
Woofer
8 inch treated paper with rubber surround
Input
4 pin Euroblock
Included accessories
rubber feet, male Euroblock
Dimensions (W x D x H)
419.4mm x 219.4mm x 271.5mm (inc feet)
Weight
5kg
