CVS-C5W

Art.-Nr.: CVS-C5W

Request now Project consulting

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

16 ohms 5 1/4" Contractor Series Ceiling Speaker

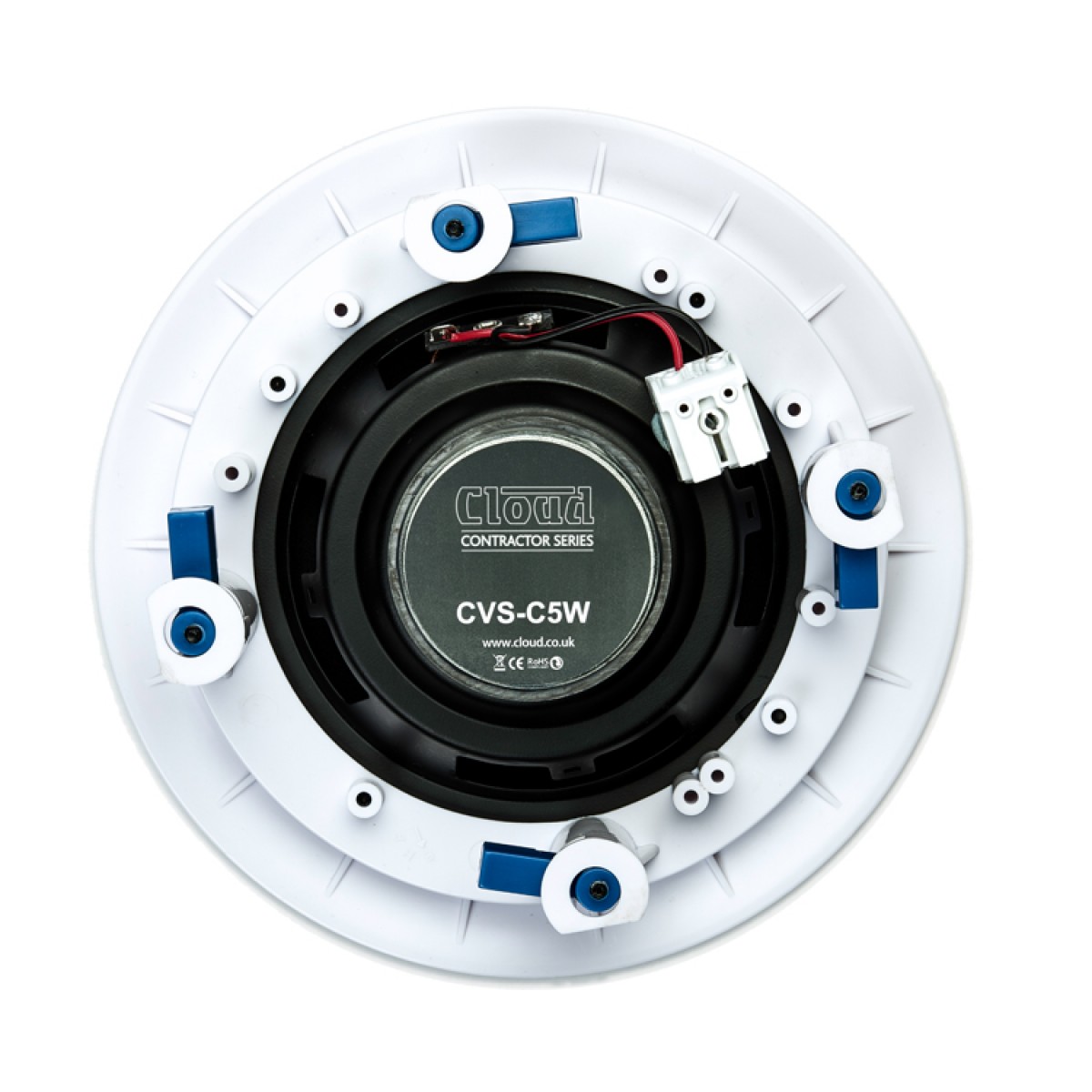

The Cloud CVS Contractor Series is a low-cost range of quality loudspeakers for flush in-ceiling installation. They are ideal for background music and announcements in pubs, bars, hotels, offices and general circulation areas in most types of public building. The loudspeakers provide both good musical reproduction and a high level of speech intelligibility. They are very easy to install, requiring a single circular cut-out in the ceiling or ceiling tile: a cutting template is provided with each loudspeaker. The loudspeakers are fixed in place by four dog-leg clamps which can be actuated and tightened from below with a screwdriver.

All loudspeakers are constructed in lightweight ABS plastic with open back, infinite baffle characteristics. With the exception of the CVS-C5, all models include a 100 V-line transformer with three power tappings, plus the option for low-impedance operation. Connections are made via a multipin “Easy Connect” terminal block on a flying lead.

The CVS-C5 and CVS-C5T are 5 1/4" dual-cone designs: they differ only in the addition of a 100 V-line transformer on the CVS-C5T. In common with the whole range, the cones are constructed from treated paper with a cloth surround. The CVS-C52T and CVS-C53T are also 5 1/4" designs, but are fully coaxial with a 1/2" Mylar dome tweeter; the CVS-C53T has a higher power rating but the two models are otherwise identical.

Product Details

Low-cost 5 1/4" ceiling speaker
Cutting template supplied
Good musical quality and speech intelligibility
Low impedance 16 ohms - Max 20 W
Low profile back can for installation into ceiling voids with limited height
“Easy Connect” terminal block simplifies installation
Color: white, black

5 1/4"

Dual cone

5 1/4" treated paper, with cloth surround

57 Hz – 20 kHz (-3dB), 73 Hz – 20 kHz (-10d)

16 ohms / 8 ohms (T-versions)

85 dBA

10 W

20 W

169 mm

Painted steel

205 mm x 80 mm

CVS_datasheet_en
