i73 PRO EDGE | HA-i73PROEDGE

i73 PRO EDGE

Art.-Nr.: HA-i73PROEDGE

Request now

Formed in 2011 by group of sound and electronics engineers with +45 years of combined experience in the Pro Audio world, Heritage Audio brings a new flavor to the high end studio equipment market. Combining a vintage look and sound with key features not found in ancient equipment, Heritage Audio adds some spice to 1970s Series 80 consoles and outboard racks, expanding the sonic palette of any professional or home studio.

Overview

12 x 16 USB-C interface with 2x integrated 73 style preamp

The i73® PRO Edge is the first ever USB-C interface with two built-in pure Class A 73 style preamps. It aims to provide musicians, producers and audio engineers with an easy path to that cherished analog experience that have inspired music creation since the early 70’s. The i73® PRO Edge incorporates the same Class A transformer-balanced circuitry as the Heritage Audio classic 73 style preamps and provides all that classic mojo and vibe straight from the i73® PRO Edge to the computer.

As with any of Heritage Audio’s 73 style preamps, a three way input is with true studio quality implemented: A hearty MIC preamp with up to 70dBs of gain, an electric guitar/bass input with a fast, dynamic JFET DI and a clean LINE input. The i73® PRO Edge provides two additional LINE inputs and allows to connect eight additional analogue channels via ADAT in/out.

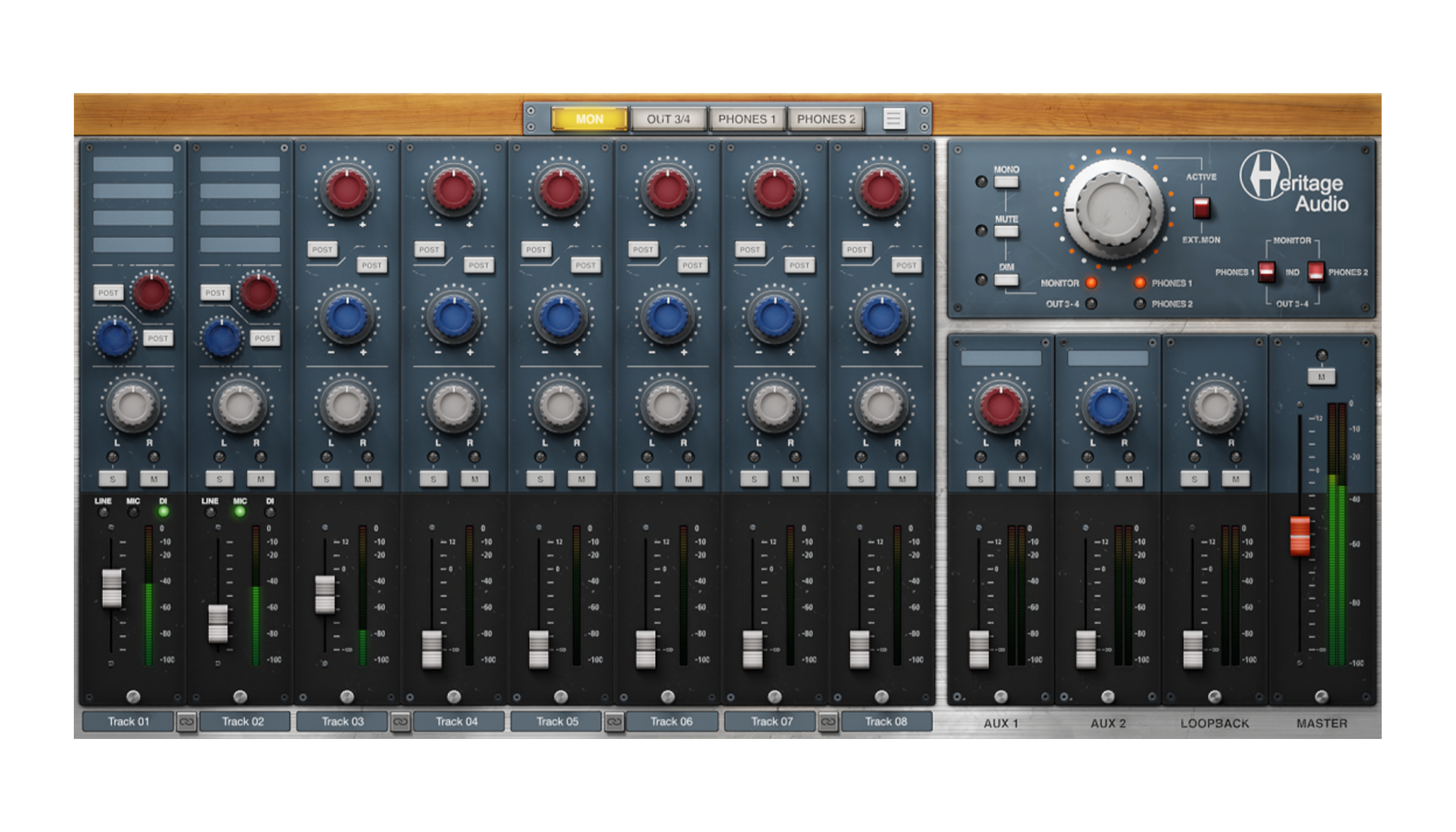

But a 73 style Class A preamp is only the gate to get to the Full Analog Experience. A low latency monitoring mixing console has been developed from the ground up with an independent configurable mix for two different speakers set and two headphones cues within the Heritage Audio MIXER running inside the i73® PRO Edge.

An integrated DSP allows realtime processing within Heritage Audio’s MIXER with an ever growing comprehensive set of tools modeled after Heritage Audio’s own outboard and private gear collection. It is also possible to insert third party native plugins via the MIXER’s Aux channels. For later post-processing and maximum flexibility, the WET and DRY signals can be recorded simultaneously in the DAW.

i73® PRO Edge provides the right tools to monitor audio just like in the Golden Era of recording studios out of the box and capture this sound right into the DAW with the advantage of a modern home studio workflow.

Product Details

12-In / 16-Out USB-C Audio Interface
2× Class A 73 style preamp with up to 70dB of gain for true studio-quality recordings. Microphone/line input, on combo XLR jack and dedicated JFET DI input for Hi-Z instruments.
2× Extra line inputs.
Direct monitoring with Heritage Audio's MIXER, processed in real-time with imperceptible latency.
2x Analog stereo monitor output over TRS controlled independently by Heritage Audio's MIXER (1 mix per stereo out).
2 x Independent stereo headphone outputs with dedicated cue.
Recording, mixing and playback at up to 24-bit/192kHz.
+48V PHANTOM power, PAD and PHASE.
MONO, MUTE and DIM.
Classic attractive European console design.
Compatible with MacOS and Windows 10 and 11
Full Analog Experience powered by DSP for real-time tracking processing with imperceptible latency.
Including a growing collection of Heritage Audio effects modeled after Heritage Audio's own outboard and Heritage Audio's private gear collection.
Able to record both WET and DRY streams from the MIXER to the DAW at the same time.
Class-leading AD/DA conversion.
USB-C connection to computer (cable included).
Digitally expandable over ADAT (up to 8 channels).
Mini-DIN MIDI IN/OUT connector.

48 V

up to 24-bit/192kHz

2x Toslink (in/out)

Mini-DIN connector

MacOS and Windows 10 and 11

USB-C

12 VDC, external

223 x 200 x 90 mm

1.825 kg
