SPR832GG
Art.-Nr.: SPR832GG
Request now Project consulting

CAYMON manufactures a wide range of products for portable and installed applications, ranging from equipment and touring racks, microphone, music and speaker stands to brackets, flight cases, adaptors, soft bags and accessories.

Overview

19" rack cabinet - 32 units - 600mm W x 800mm D - Grill front & rear door

The SPR832 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR832 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

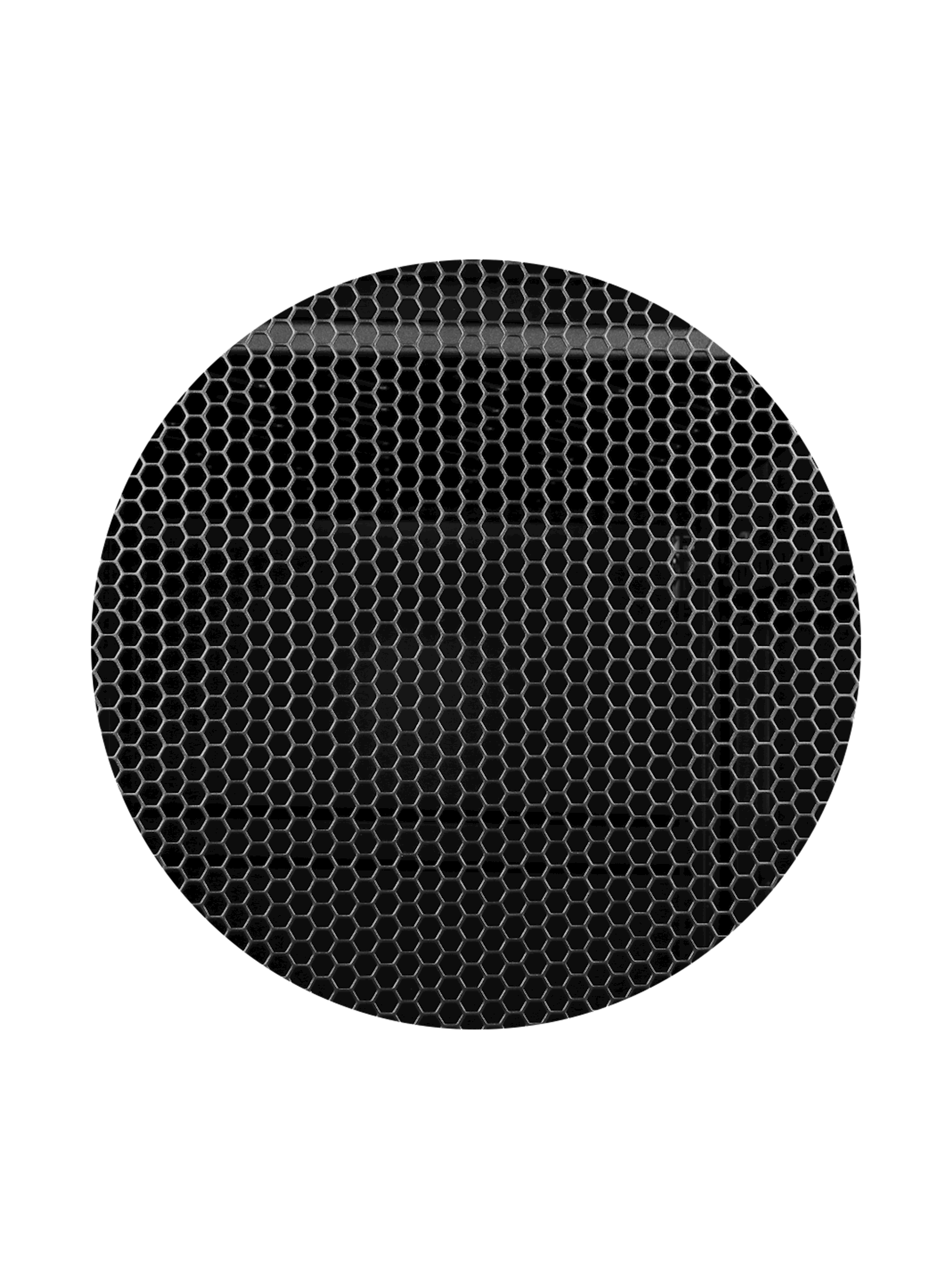

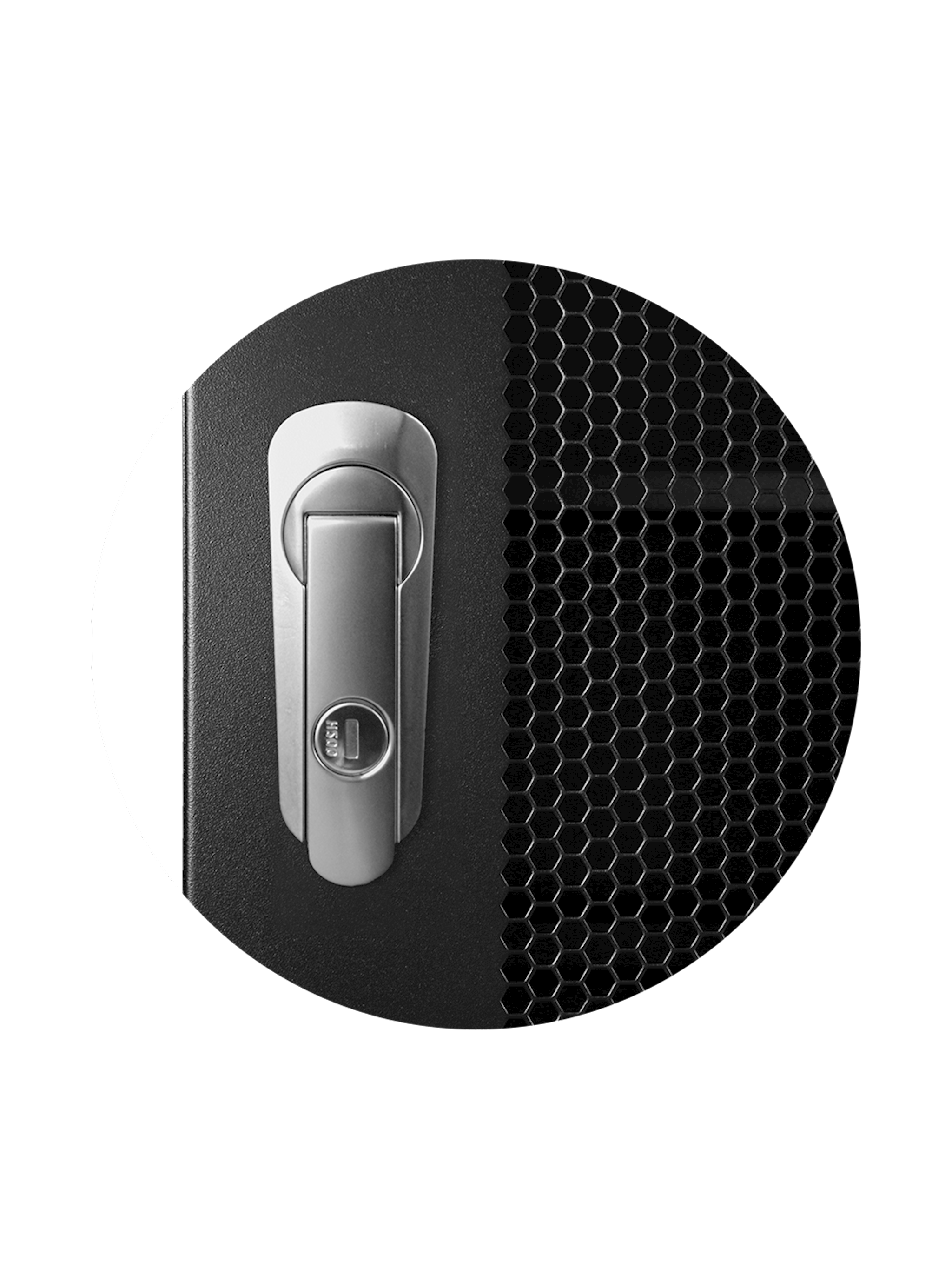

The SPR832GG comes with 2 perforated steel grill doors (front and rear). The mesh perforation with hexagonal pattern provides an optimal air flow through the cabinet. The swing handle with cylinder lock safely locks the equipment inside.

Product Details

  • Stores up to 32 units of 19” Equipment
  • Integrated ventilation grid on top
  • 50 mm Wheels + leveling feet included
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front and rear in depth adjustable 19” profiles (max 740 mm)
  • Reversible door position
  • Mesh perforation with hexagonal pattern
  • Swing handle with cylinder lock
Dimensions
600 x 1540 (1610) x 800 mm W x H (incl. feet) x D
Weight
82.0 kg
Colours
Black (RAL9004)
Unit height
32 HE
Max. usable depth
740 mm
Static load capacity (adjustable feet)
800 kg
Dynamic load capacity (transport castors)
400 kg
Accessories included
4 x Key for sidepanel lock, 1 x Allen key, 4 x Levelling feet, 4 x Key for front/back door, 20 x KS600, 20 x KM600
